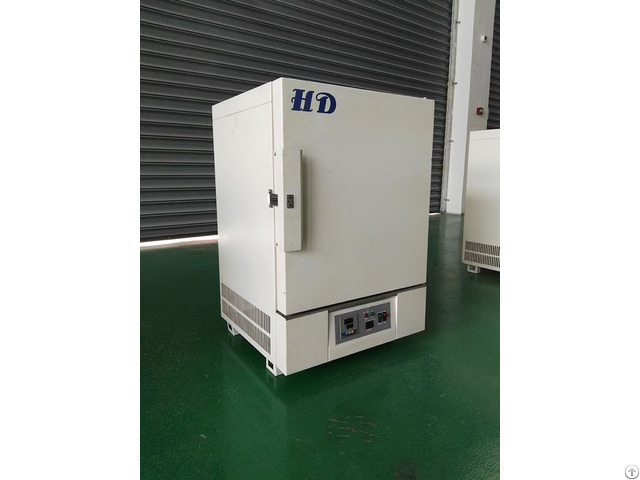

Electric Blast Drying Oven - China

Applicable to electrical, electronics, instrumentation, materials, medicine and other scientific research, production units, mainly used for drying, baking, heat treatment, disinfection, insulation and other temperature tests.

Features:

1 - Internal tank of drying oven is made of stainless steel, and is manufactured by argon arc welding process.

Silicone rubber seals and mechanical locking devices effectively seal the test chamber.

The shell of the drying oven is made of cold rolled steel sheet, and the double sides electrostatic epoxy polyester powder is sprayed at 180℃ for curing.

The gap between the test chamber shell and the test chamber is filled with centrifugal glass wool felt to achieve the lowest heat loss.

2 - Customers can adjust the height of the shelf as needed to make more efficient use of space.

3 - Forced air convection duct structure; the air duct is located on the lower side of the oven, and the control cabinet is located at the bottom of the oven.

Security: Have independent over temperature protection device, to ensure safe operation.

Model: HD-1EBC;

Volume: 72 L;

Internal dimensions (D*W*H) : 400 *450 *400 mm

External dimensions (D*W*H): 580*610*900 mm; Maximum temperature: 300℃;

Minimum temperature: Room temperature +20℃;

Heating time: Room temperature.

300℃ ≤ 90 min.

;

Temperature fluctuation: ≤ ± 0.5℃;

Temperature uniformity: ≤ ± 2.5%;

Controller: Digital temperature controller, with self tuning PID function;

Heater: Nickel-chromium heating wire;

Power supply: AC 220V;
