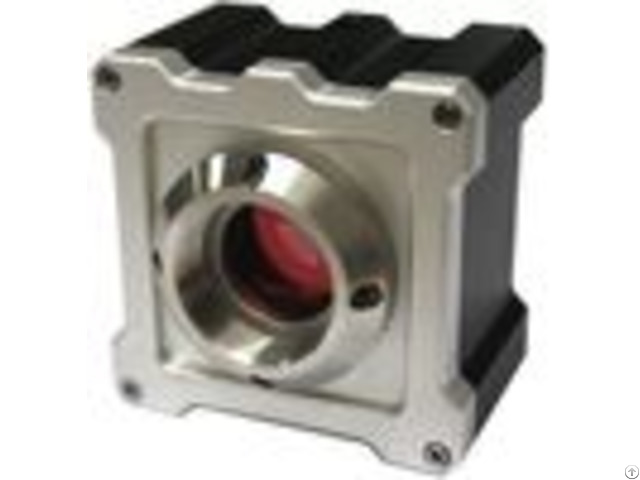

Digital Camera G1tc080c M Global Shutter For Industrial Machine Vison And Inspection - China
price: 220.00 Dollar US$
G1TC080C/M 0.8Mega Color/BW USB3.0 Camera
Sensor Model 1/3" CCD Color/ B/w
Sensor Dimension 4.65μmx4.65μm
Frame rate 26fps
Scan Method Progressive scan
Sensibility 0.4V/lux-sec(550nm)
Resolution 30fps@1024x768
Shutter Global shutter Dynamic Rate 61dB
SNR 44dB
Spectral Response 400nm~700nm
Data Interface USB3.0, 5Gbps, 3M Cable
Power DC5V± 5%
Current ≈500 mA
White Balance Manual /Auto /a key white balance
Auto exposure Control 26μs~20min, Manual/Auto exposure
Lens Mount C Mount
Busy Indicator LED
Working temperature 0℃~60℃
Working humidity 0%-85%
Company Contact:
- Posted By: JPLY Electronic Technology Co., Ltd.
- Phone: +8602038077661
- Address: 3rd Floor ,Number 59 Tangdong East Road, Guangzhou China, Guangzhou , Guangdong , China
- Email:
Published date: December 4, 2017
- Business Description: As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business.
With quality and integrity at our core, we deliver best-in-class camera and related product.
JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.
The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time.
Being a leader of camera designer in China, JPLY is developing to a world class brand.
We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
