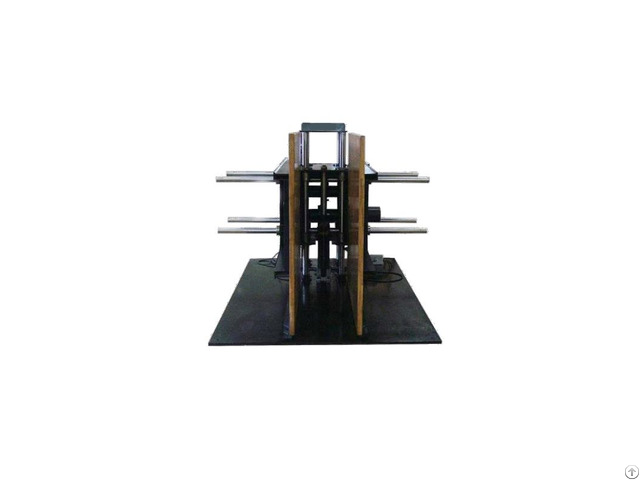

Clamping Force Test System - China

Clamping force test system is used to do package clamping test of finished products, such as home appliances, furniture, toys, kitchen ware.

It can simulate the situation that the goods in the container are being clamped from the container to the warehouse, to check whether the products are damaged due to the clamping, to evaluate the clamping resistance ability of the package.

It can be used for factories and enterprises, technological supervision departments, commodity inspection departments, scientific research institute and others to measure and research.

Functions and features:

1 - Windows-based stable computer automatic control system: fully automatic remote control interface, the operator only needs to input simple values, it can accurately complete the test;

2 - The operation interface is mainly based on the data curve real-time display window, and displays the test parameters, system status, test progress and others at the same time;

3 - Supply high-precision AD conversion, preamplification, data processing, and test value output; fully digital circuit system ensures accurate test and stable performance;

4 - The test machine has the functions of testing, displaying, memory, statistics, printing and clamping force resistance curve real-time display of every parameter described in the standards;

5 - With data processing function, it can directly get the statistical results of every data; with automatic reset and fault diagnosis function, it is easy to operate; Model: KCT102-1;

Clamping capacity (kg): 0～2000;

Clamping plate size (mm): 1200*1200;

Distance between clamping plates (mm): 400~1200;

Lifting height (mm): 0~300;

Overall dimensions (mm): 1200*700*900;

Weight (kg): 1500;

Measurement and control system: PLC /PC control (optional);

Requirement for foundation: flat cement floor;

Power supply: Three-phase, AC 380V±10%, 50Hz;

Environment: Temperature: 0~40℃, humidity: ≤80% (non condense);

Remarks: The clamping capacity, clamping plate size, distance between clamping plates, lifting height and other indicators can be customized according to user needs.
