Cdw 60 Impact Test Low Temperature Chamber China - China

price: 3600.00 Dollar US$

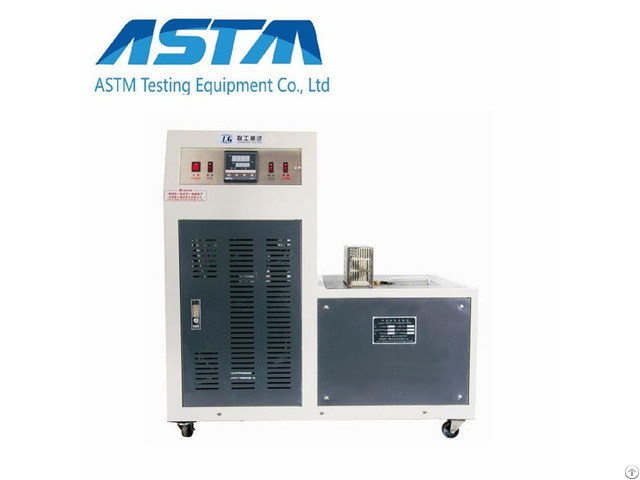

Cdw 60 Impact Test Low Temperature Chamber China

Products Photos Catalog Cdw Impact Test Photos Catalog

Application of Equipment The CDW-60 Impact Test Low Temperature Chamber is the compressor refrigeration equipment newly developed by our company according to the requirements for low temperature devices in JB 5376-1991 Technical requirements of low temperature constant temperature tank and GB/T 229-2007 Metallic materials-Charpy pendulum impact test method.

This equipment adopts imported compressor refrigeration technology, and heat balance principle and circulating stirring method to achieve automatic cooling uniformly and constant temperature of the test specimens, which can fully meet the various temperature control indicators stipulated in relevant standards GB/T 229-2007, and the American standard ASTM E23-2018, European standard EN10045 and ISO148 etc.

This equipment adopts single chip microcomputer technology control, digital display temperature value, automatic temperature control, automatic timing, automatic alarm, simple and safe operation, fast cooling speed, large volume, high temperature control accuracy, which is the most ideal equipment for material in low temperature impact test sample cooling and heat preservation.

It can also be used for other low-temperature detection and test work.

Main Technical Parameters Technical Parameters Temperature control range +30~-60℃ Temperature control accuracy ≤±0.5℃ Temperature uniformity ≤1℃ Cooling speed (when room temperature is 25℃) Room temperature~0℃ About1.8℃/min 0℃~-20℃ About1.5℃/min -20℃~-40℃ About1.3℃/min -40℃~-60℃ About1.0℃/min Heating speed About 3℃/min Size of cooling tank 275×160×120mm (Length x Width x Height) about5L Effective size of cooling tank 150×140×110mm (Length x Width x Height) Number of specimen can be placed 60 pieces (impact specimen size: 10×10×55mm) Digital timer 1minute ~ 9999 minutes, resolution: 1minute Cooling medium Absolute ethyl alcohol Dimensions 905×505×920mm (Length x Width x Height) Power supply AC220V, 50HZ Power 2.2kW Operating environment temperature 5℃~30℃


Company Contact:


  • Phone: +86 18854162067

  • Address: No.9, Tiepei Road, Huaiyin District, Jinan City, Shandong Province, Jinan , Shandong , China

  • Email: Email


Published date: November 11, 2021

  • Business Description: Our factory is the professional manufacturer in the Chinese Material Physical Testing Machine Industry, which include the UTM and TTM series, Impact Test series, Compression Test series, Cupping Tester series, Hardness Tester and Metallographic products,etc.

    If you have any requirement about the testing equipment, please feel free to contact us.
