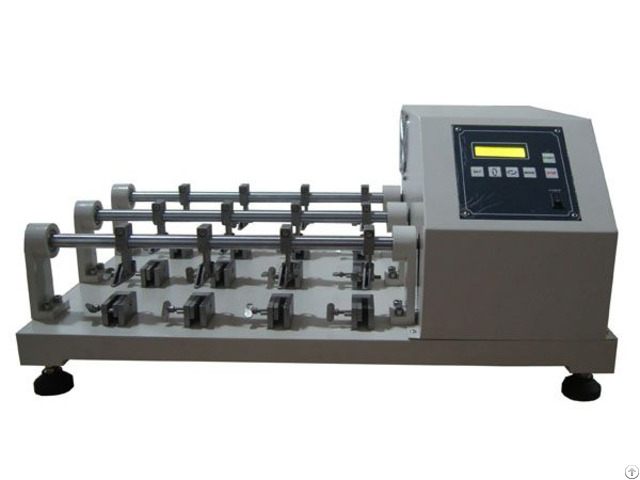

Bally Leather Flexing Test Machine - China

Bally Leather Flexing Tester is the internationally-accepted method for the assessment of the flexing endurance of light leathers and their surface finishes.

The tendency for cracks to form in the creases caused by walking can also be determined.

The Bally flexer has a different flexing mechanism to the vamp flexer and is complementary to it.

It is also used to precondition samples prior to determining water vapour permeability - particularly in assessing uppers for protective footwear.

Bally Flexometer test methods includes ISO 5402-1, ISO 20344, ASTM D6182, IULTCS/IUP 20-1, SATRA TM55, EN 344 and etc.

Although this leather flex test methods require the same flexing speed but have different requirements for the test grip.

Below is a comparison of ISO 20344 and ISO 5402-1 - Applicable Standards:

EN ISO 20344: 6.6, I.U.P.

10+20, I.U.P.

20, UNI 4818, DIN 53.351 Dauer-Faltverhalten, UNE/I.U.P.

20 Ensayos de resistencia a la flexion continuada

Specifications: The Bally flexometer machine is simple to use, is bench mounted and supplied ready to connect to the electrical supply.

The equipment with either 6, 12 working stations are also available.

Low temperature versions of this equipment are also available (to -20C) subject to ambient temperatures in location of machine.
