5kn 10kn 20kn 30kn 50kn 100kn Universal Material Tensile Tester - China

applicable industries fast delivery parts of universal testing machine, tensile compression testing machine, universal testing equipment can test various materials (both finished and semi-finished products ) of tensile strength, compressive strength and elongation, can do stripping, tear strength, flexural, compression test, etc.

it can connect up to the computer and display or print out the test times, test value, max.

value, etc.

also, it can make various report forms according to the requirements.

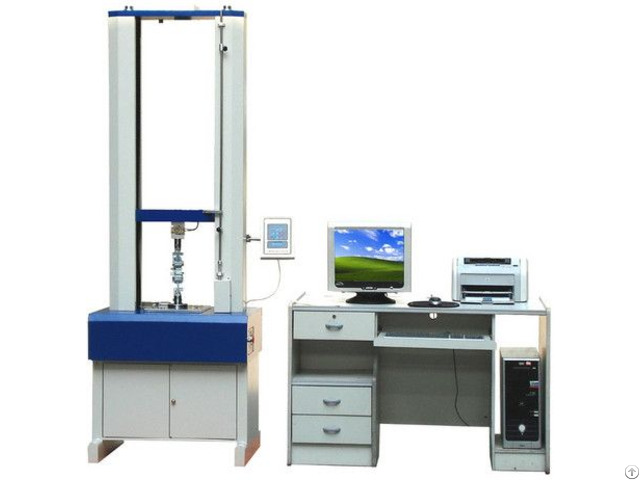

universal material tensile compression testing machine.

jpg fast delivery parts of universal testing machines, tensile compression testing machines, and universal testing equipment are widely used in all kinds of hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals, and other types of materials, testing, tensile, tear, peel, compression, bending, shear, three-point bending .

and other physical test performance.

technical parameters model xb-ots-600

max capacity 5, 10, 20, 50, 100, 200, 250kgf 500kgf 2t 10t can be set

induction method: precision load cell (sensor)

max.

load capacity: 5000kg

force resolution/accuracy: ± 0.5%

accuracy class: 0.5

resolution: 1/1, 000, 000

test width 400mm(standard specifications special specifications can be customized)

stroke resolution: 0.01mm

machine dimension (w*d*h) 800×530×1600mm (l*w*h) or customized

weight: about 65kg

power: 1 phase 220v 50hz

packing standard export plywood case

displacement control: displacement encoder count with four-frequency technology

so the displacement of four times the resolution can be up to 0.0005mm

force system: servo drives + servo motor + precision ball screw drive control system: mechanical transmission + tm2101 + pulse command and control system control measurement and control system: tm2101 and control system; master controller uses the most advanced 32-bit arm processor in the 21st century, the processing speed of the pentium-class common computer standards, compared to the traditional 8 yuan scm control system overall performance greatly improved, faster operation, control accuracy higher obtain data: the key components are used america's most stable and ultra-precision 24 yuan ad, the sampling rate of up to 2000 times/sec, can capture the power of an instantaneous change process, the entire file, regardless of the resolution of up to 1, 000, 000 indexing.

computer style ( can connect to a computer ) controlled by computer can print out the detailed curve graph of the test results.

universal material tensile testing machine.

jpg following are fixture samples, we can offer proper fixtures depending on your products software functions: 1 - use windows working platform, set all parameters with dialog forms, and operate easily; 2 - using a single screen operation, do not need to change the screen; 3 - have simplified chinese, traditional chinese, and english three languages, switch conveniently; 4 - plan test sheet mode freely; 5 - test data can directly appear on the screen; 6 - compare multiple curve data through translation or contrast ways; 7 - with many units of measurement, the metric system and the british system can switch; 8 - have automatic calibration function; 9 - have a user-defined test method function 10 - have test data arithmetic analysis function 11 - have the function of automatic magnification, to achieve the most appropriate size of graphics corresponding standard: astm d903, f2258, gb/t 2790/2791/2792, cns-11888, jis k6854, gb/t 6329, bs en 14410-2003, yy/t 0729, gost 21751 and other standards.

advantage

ø 24 hours online

ø 35 years of experiences

ø sample chamber of each model

ø best price, fast delivery

ø oem, odm

ø oversea offices

ø own import and export business license

øiso, ce, ul, astm, din, en, gb, bs, jis, ansi, tappi, aatcc, iec, vde

customer support services

ø installation

ø training (training customer employees)

ø calibration

ø preventative maintenance

ø replacement parts

ø assistance via phone or internet

ø on-site diagnosis and repair/online diagnosis and repair
