Lab Transparent Indium Tin Oxide Ito G Coated Glass - China

50x50x1.1/0.7mm, 10 ohm/sq 50pcs

Product information

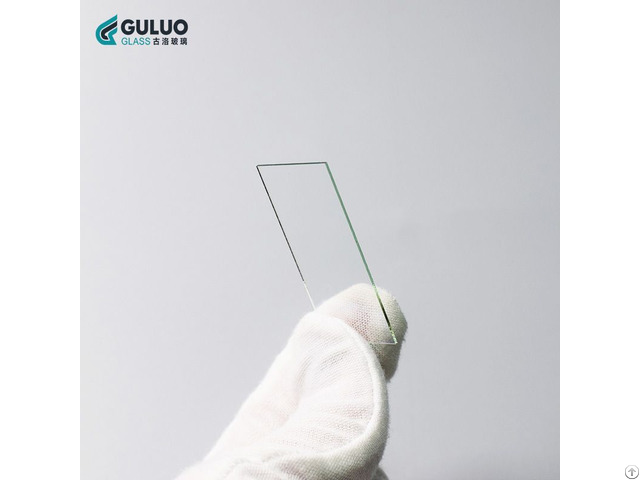

Product name: ITO conductive glass

Film thickness: 30nm-380nm

Light transmittance: 78%- 90%

Product Type: Experimental Supplies

Production process: cutting, etching, straight edge, round edge, point corner, scribing, grooving and hole opening, etc.

ITO conductive glass is made of soda-lime substrate or Penggui substrate glass and coated with a layer of indium tin oxide (commonly known as ITO) film by magnetron sputtering.

As a metal compound that does not have good transparent and conductive properties, it has the characteristics of forbidden bandwidth, high light transmittance in the visible spectrum and low resistivity.

It is widely used in flat panel display devices, solar cells, special functional window coatings and other optoelectronic devices field.

ITO thickness: 0.4mm, 0.5mm, 0.7mm, 0.8mm, 1.0mm, 1.1mm, 1.5mm, 2.0mm, 3.0mm, other thicknesses can be customized ITO resistance value: 3-4 ohm, 4-6 ohm, 5-7 ohm, 7-10 ohm, 10-15 ohm, 15-20 ohm, 20-30 ohm, 30-40 ohm, 40-60 ohm, 70 -120 ohm, other resistance values can be customized In the process of production, packaging and transportation of ITO/FTO conductive glass, the surface of the glass may be contaminated by impurities such as dust, dust, grease, etc.

It is necessary to clean ITO and FTO conductive glass before using it.

How many cleaning methods are there? The most commonly used is ultrasonic cleaning with organic solvents.

The grease stained on the glass surface is insoluble in water, but it is soluble in toluene, acetone, ethanol and other organic solvents.

Among them, toluene has the strongest decontamination ability, so use it first Toluene is cleaned, but toluene cannot remain on the surface of the standard glass.

Because toluene is soluble in acetone, it can be cleaned with acetone.

Not only can the residual grease be washed away, but the toluene is also dissolved.

Similarly, acetone cannot remain on the glass surface, because acetone is soluble It is more than ethanol, so you can continue to use ethanol for cleaning.

Ethanol and water are mutually soluble in any ratio, and then use a large amount of deionized water to dissolve the ethanol, and finally put it in anhydrous alcohol for storage, and then take it out for use when it is used.

Slices.

So generally:

Toluene (10-20min) → acetone (10-15min) → ethanol (10-20min) → deionized water (20-30min) in order to carry out ultrasonic cleaning → anhydrous alcohol storage (take out for long-term storage)
