  • Yc 200 Lab Multi Functional Extracting Machine Supplier - China

    price: contact company for price

    YC-200 Plant Extraction Machine Suitable for efficient extraction and concentration of active ingredients of laboratory plants.

    Multi-function: Heat reflux extraction, vacuum low-temperature extraction, seepage extraction, vacuum low-temperature concentration, and volatile aromatic oil recovery.

    The part in contact with the material is made of SUS304 stainless steel(316L stainless steel optional) and conforms to GMP regulations.

    Used by more than 1, 500 university research institutes and enterprise laboratories in the world.

    Pilotech YC-200 Plant Extraction Machine is suitable for the extraction of active ingredients of plants such as ginkgo and Chinese herbal medicines in the laboratory and pilot plant.

    There are various specifications, you can customize the specifications you need.

    The machine adopts integrated design and is equipped with wheels so as to realize mobility.

    It only needs to occupy a small area and is easy to operate.

    Download Catalog Plant Extraction Machine: The Complete Buying Guide Pilotech YC-200 plant extraction machine is used to extract active components from natural products, flowering trees and shrubs, traditional Chinese medicines, etc., by adopting an extracting method using aqueous solution or other solvents.

    It is the most widely used method at present.

    Pilotech YC-200 plant extraction machine adopts an extracting method by selecting the solvent with high solubility to the required components and low solubility to the other components, to dissolve the active components from medicinal materials, based on the solubility of various active components in Chinese herbal medicines.

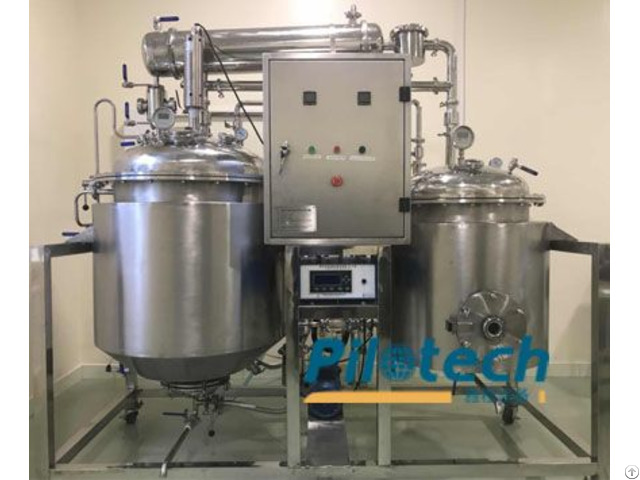

    Pilotech YC-200 plant extraction machine consists of extraction tank, concentration tank, vacuum pump, oil-water separator, foam breaker and condenser.

    The extraction tank and the concentration tank feature a three-layer jacket structure.

    Pilotech plant extraction machine is equipped with the oil-water separator.

    After the volatile perfume oil is extracted and cooled, effective oil-water separation is performed between the volatile perfume oil and the steam cooled water, thereby obtaining the perfume oil you need.

    The water-ring vacuum pump with low noise is applied to Pilotech YC-200 plant extraction machine, with the pump head made of SUS304 stainless steel, while the water-ring vacuum pump has low noise, avoiding the impact on the environment during equipment operation.

    Natural products and Chinese herbal medicines contain many foam-prone substances.

    A lot of foam will be produced in the extraction process, which easily bring decoction dregs into the condenser.

    Therefore, foam removal is needed.

    Pilotech plant extraction machine is equipped with an efficient foam breaker, to effectively separate the foam produced in the extraction process.

    Pilotech YC-200 plant extraction machine has many specifications: 5L, 10L, 15L, 20L, 25L, 30L, 50L, 60L, 100L, 150L and 200L.

    Whether you need to process small samples or pilot-scale samples, we can offer you the right choice.

    The contact part of Pilotech plant extraction machine with the materials is made of SUS304 stainless steel, which conforms to GMP specification.

    SUS316 stainless steel can also be used if necessary.

    Pilotech YC-200 plant extraction machine uses Omron temperature controller and high-efficiency heater, providing accurate temperature control and quick heating speed.

    Vacuum low-temperature concentration is also an important part of plant extraction equipment.

    Under vacuum condition, the concentration temperature can be as low as 45 DEG C, and the concentration efficiency is very high, with a concentrating ratio of 1.1-1.38 - If you want to know more about YC-200 plant extraction machine, Please be free to ask a quick quote now! Tel: 0086-21- 51082915

    Fax: 0086-21-51069385 Wechat: 8615261820185

    WhatsApp: 8615261820185


    Company Contact:


    • Phone: 021-51082915

    • Address: Rm. 1801, Pinggao Plaza, No. 88 Rd. Jiufeng, Songjiang district, Shanghai, 201600, PR China, shanghai , shanghai , China

    • Email: Email


    Published date: August 19, 2019

    • Business Description: Pilotech started to produce laboratory spray dryer since 2005 - We have over 50 patents and over 15 software copyrights.

      Our company is also the only manufacturer in the world that can produce a wide range of spray dryers, including benchtop spray dryer, vacuum spray dryer, spray-freezing dryer, all-in-one machine for spray drying and fluidized granulator, organic solvent spray dryer and nano spray dryer.

      Our laboratory spray dryer has many advantages, such as stable performance, easy operation and durable service.

      For this reason, the product is very popular among researchers.

      It has occupied more than 70% of the market in China.

      It is now used by more than 3,500 users in the world, and exported to more than 60 countries and regions, including USA, UK, Germany, Italy, Russia, South Korea, Singapore, Japan, Malaysia, Canada, Australia, South Africa, Taiwan and Hong Kong.
