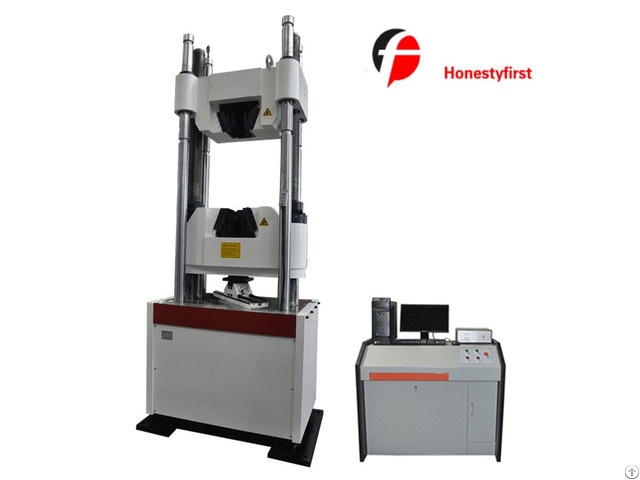

CONTACT: Jinan Honesty First Test Equipment Co., Ltd Contact: Peter Wen(General Manager) Tel: +86 13906415399(Wechat)(Line) (whatsApp) Skype: testing_machine QQ 1067286983 Computer Control Electro-hydraulic Servo Universal Testing Machine It is mainly designed for tension, compression, bending, and cutting test of metal materials.

This machine is also used for compression and bending test of nonmetal materials, such as cement, concrete and son on.

Equipping with special auxiliaries, it can be used for mechanical property testing of fastener, wire rope and components.

It is the ideal testing equipment for mining industries, universities and engineering quality testing department, research institution and so on.

Technical specification

Model WAW-300D WAW-600D WAW-1000D

Max.

Load 300KN 600KN 1000KN

Measuring range 6-300KN 12-600KN 20KN-1000KN

Load accuracy ± 1% of indicated value

Displacement resolution 0.01mm

Piston stroke 250mm

Tension test space (including piston stroke) 800mm 850mm

Compression test space 700mm 750mm

Diameter of round specimen Φ6-Φ26mm Φ13-40mm Φ13-60mm

Thickness of flat specimen 0-15mm 0-30mm 0-40mm

Max.

Width of flat specimen 80mm 80mm 120mm

Clamping method Built-in hydraulic clamp

Diameter of cutting specimen Φ10mm

Platen size 200x200mm

3 points bending fixture space 450mm

The width of bending anvil 140mm

Support column diameter Φ30mm Φ40mm

Diameter of load-frame 990x600x2435mm 1100x770x2490mm

Diameter of control cabinet 1140x700x930mm

Weight 2800KG 3000KG 4700KG

Power supply Three phases AC 380V 50Hz

Company Contact:

• Posted By: Jinan Honesty First Test Equipment Co.,Ltd

• Phone: +8613906415399

• Address: No.29,Nanxinzhuang West Road, Huaiyin District, Jinan City, Shandong Province, jinan , Shandong , China

• Email:

• Website: http://www.honestyft.com

• Business Description: http: //www.

  honestyft.

  com

  CONTACT:

  Jinan Honesty First Test Equipment Co.,Ltd

  Contact: Peter Wen(General Manager)

  Tel: +86 13906415399(Wechat)(Line) (whatsApp)

  Skype: testing_machine

  QQ 1067286983

  Email: jnhesion@126 - com

  Corpora tion introduction:

  Jinan Honesty First Test Equipment Co.,Ltd was founded in 2008 - Our company headquarters is located in Jinan City of Shandong Province.

  As professional designer, manufacturer and OEM producer for universal testing machine used for testing mechanical performance of metal, non-metal and composite materials.

  Our company insists on the most important principle is product quality.

  With advanced technology and first class technician, now many categories of products put into international and domestic markets.

  Our main products are Horizontal tensile Testing Machine, Hydraulic Universal Testing Machine, Electronic Universal Testing Machine, Compression Testing Machine, Fatigue Testing Machine, Dynamic & static Universal Testing Machine, Non destructive Testing, Spring Testing Machine, Rubber & plastic Testing Machine, Textile & fabric Testing Machine, Measuring Tolls, Tools ＆Hardware, Friction and abrasion Testing Machine, Impact Testing Machine, Torsion Testing Machine , ceramics testing machine, plastics test machine, polymers testing machine, metals test equipment, composites test instrument, Lathe, Overhead Crane, Welding Equipment, Engraving Machine, Balancing Machine and so on.

  The products meet UL, ASTM, JIS, GB, ISO, TAPPI, EN, BS.

  and other domestic and international standards.

  “ To provide reasonable resolutions ＆to meet our customer request” is our goal.

  We sincerely invite customer to visit us to reach win-win cooperation

  CONTACT:

  Jinan Honesty First Test Equipment Co.,Ltd

  Contact: Peter Wen(CEO)

  Tel: +86 13906415399(Wechat)(Line) (whatsApp)

  Skype: testing_machine

  QQ 1067286983

  Email: jnhesion@126 - com

  Not all products that we produce can be shown here.

  Be sure to contact us if youdont see what you are looking for.
