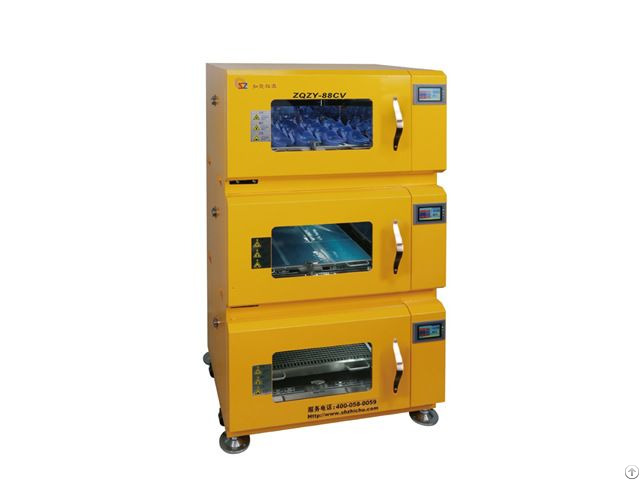

Stacked Shaking Incubator Ce And Iso9001 Certificated - China

Product Overview

1 - Bottom and middle units are integrated double-decker structure which can stack up to three units high, space-saving and high-capacity.

2 - Triple-e ccentric drive is precisely counterbalanced to impart smooth, uniform motion to all flasks regardless of their position on the platform.

3 - Audible and Visible Alarms alert the user and shuts off heaters to setpoint deviation.

4 - Automatic restart after power interrupt with Non-Volatile Memory keeps studies running smoothly.

5 - Insulating and tempered glass door which is non-screw design provides good view of incubating state without opening lids.

6 - Streamlined shape, backing finish outer cover and stainless interior chamber with rounded corners easy to clean and protect bacteria breeding.

7 - High quality and low noise imported CFC free compressors ensure refrigeration effect and stable.

8 - The EMC (Electromagnetic Interference) design to make machine more accurate and stable.

9 - Open-Door Cutout Switch stops agitation when chamber is open providing a more favorable work environment.

10 - With ultraviolet sterilization function.

Specialities

1 - Seamless welding inner chamber, its bottom can be washed thoroughly.

2 - LCD Touch Screen that making parameters setting and viewing easily.

Such as:

a.

The setting temperature, speed, time and the real temperature, speed, remaining time are shown simultaneously.

b.

Keyboar d blocking prohibits miss operation.

c.

Setting rotation direction is positive or reverse.

d.

Setting circulation fan opens normally or automatically.

e.

Data memory function can check the history record within 3 months.

f.

The data easily transfer through the USB interface.

3 - Servo-motor makes speed control precisely and ensures high-speed performance

and stability.

4 - Timing frost-removing function, the timing range is 1to 89minutes and the defrost

interval is 30-600 minutes adjustable, ensures machine working long time in

low temperature without ice block.

5 - Special designed vent satisfy the oxygen need of sample.

6 - The plastic molding clamps make it easily to put and take flasks with one hand.

Specifications

Model ZQZY-88AV/ZQZY-88BV/ZQZY- 88CV

Shaking Range 10-300rpm/10-350rpm/10-35 0rpm

(the top unit 10-300rpm)

Shaking Control ±1rpm

Orbit (diameter) φ26mm

Temp.

Range 4℃～60℃(at 23℃～25 ℃)

Temp.

Accuracy ±0.1℃

Temp.

Uniformity ±0.6℃(at 37 ℃)

Display LCD (touch screen)

Air circulation Forced air circulation

Parameter Control P.I.D Microprocessor

Max.

Capacity

(Stainless steel clamps) single 250ml×30 or 500ml×20 or 1000ml×12 or 2000ml ×8 or 3000ml×5

Max.

Capacity

(Plastic cement clamps) single 250ml×30 or 500ml×20 or 1000ml×12 or 2000ml ×8 or 3000ml×5

Timer Range 0-999.9 hrs.

Platform Size

(L×W) single 575mm×465mm

Standard Platform Universal Platform (Dedicated Platform optional)

Power Source AC220 ~ 10% 50 ~ 60Hz

Overall Dimensions

(L×W×H) 920mm×700mm×600mm 920mm×700mm×1170mm 920mm×700mm×1735mm

Weig ht 121kg 268kg 385kg

Noise Level <55dB

Internal Height 362mm

Company Contact:

• Posted By: Shanghai Zhichu Instrument Co., Ltd.

• Phone: +862134531721

• Address: 2nd building, No.3609 South Hongmei Road, Minhang, Shanghai Zhichu Instruments Co., Ltd., Shanghai , China

• Email:

• Website: https://www.zhichushakers.com

• Business Description: About ZHICHU

  CE & ISO9001 Certificated

  Integration of knowledge and action / Practical results/Technological innovation / Service first



  Shanghai Zhichu Instrument Co., Ltd. is a manufacturer specialized in the field of shaking incuabtors.

  The company integrates R & D, production, sales and service.



  The spirit of ZHICHU: build the shaker with the spirit of building an airplane.



  The three perseverance of Zhichu:

  recruit talents at all costs;

  improve product quality at all costs;

  do good after-sales service at all costs.

  The company takes "technical innovation and service first" as its purpose, takes "quality management" as its cornerstone, adopts modern management and advanced design concepts, and continuously cultivates and absorbs excellent scientific research and technical personnel to provide effective guarantee for product development and quality.

  And the company strives to provide high-quality products for users.
