    • Small High Vacuum Thermal Evaporation Coater - China

    price: contact company for price

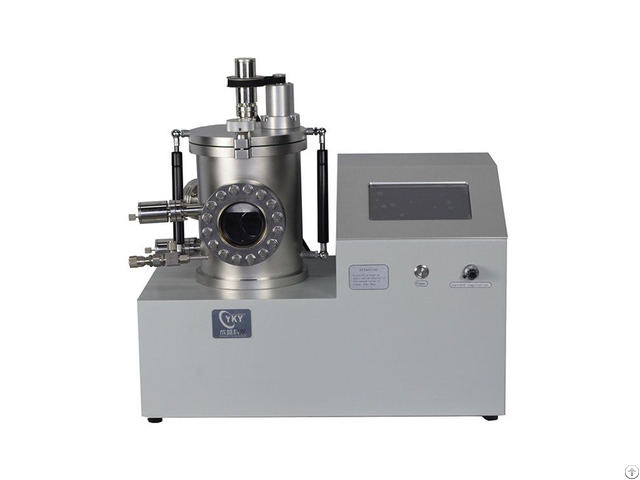

    Small High Vacuum Thermal Evaporation Coater

    Products Photos Catalog Vacuum Thermal Photos Catalog

    The vacuum PVD coater is a high vacuum compact thermal evaporation coater with evaporation temperature from 200℃ to 1700℃.

    The tungsten wire basket is used as the evaporation source, and the evaporation source is built in at the bottom of high purity alumina crucible.

    The upper cover is equipped with a rotatable sample stage, which can effectively improve the uniformity of film formation.

    The instrument has a high-precision temperature control system and uses circulating heating method, which can stabilize the evaporation of metals and organic matter.

    Stainless steel high-vacuum chamber design, with high-precision molecular pump, can achieve high vacuum requirements, the high vacuum can effectively improve the efficiency and quality of the evaporation coating.

    Application

    This equipment is suitable for evaporation coating of most metals and certain organic material films.

    Technical parameters:

    Small high vacuum thermal evaporation coater

    Sample stage Size: Φ65mm

    Distance to evaporation source: 60mm~100mm adjustable

    Rotary speed: 1-20rpm adjustable

    Evaporation system Evaporation source: Tungsten wire basket

    Max temperature: 1700℃

    Thermocouple: S type thermocouple

    Vacuum chamber Chamber size: φ170mm × 200mm Observation Window: Quartz observation window φ70

    Chamber material: Stainless steel

    Opening way: Top cover open Vacuum system Model: CY-GZK103-A

    Pumping interface: KF40 Exhaust interface: KF16

    Molecular pump: CY-600

    Backing pump: Rotary vane pump

    Vacuum measurement: Compound vacuum gauge

    Ultimate vacuum: 1.0E-5Pa

    Pumping rate: Molecular pump: 600L/S rotary Rotary vane pump: 1.1L/S comprehensive pumping performance: 20 minutes vacuum up to: 1.0E-3pa

    Other parameters Supply voltage: AC220V, 50Hz

    Dimensions: 600mm×300m m×470mm

    Total power: .

    5kw

    Total weight：40kg
