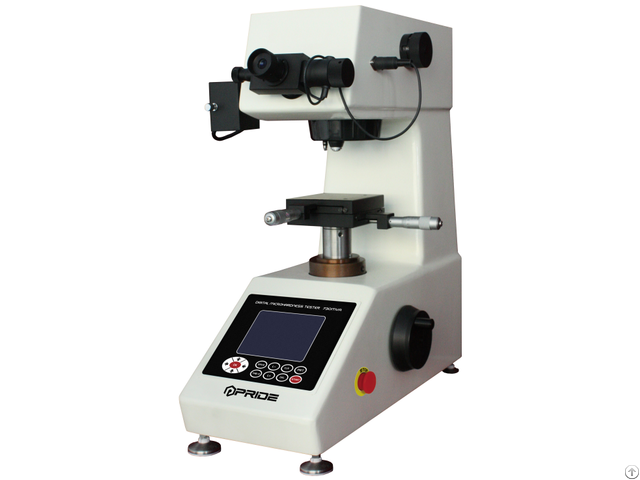

Micro Vickers Hardness Tester 730mva - China

730MVA is precision micro Vickers hardness testing machines integrated the technology of optics, mechanics and computer.

730MVA equipped with a large LCD screen, the operation is more directly and clearly.

It can display the measuring methods, testing force, indentation length, hardness value, dwell time of the testing force as well as the number of measurement.

Besides, it can save and revise the date, record the measuring results, compute the data, outputting the information with the printer, hardness conversion among 17 hardness scales, and linking to pc in RS232 interface and cable.

Features:

●Ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals;

●Glass, ceramics, agate, precious stones;

●Hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

Auxiliary Equipment:

●USB camera and 8’’ monitor is available for vision measurement;

●CCD camera, CCD adapter, Vickers measuring software and PC system is available for accurte measurement;

●Knoop indenter is available for Knoop hardness testing on the material of glass, ceramics and precious stones.

Technical specifications

Testing Force 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N

10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf

Objective/Indenters Switch Auto-Turret

Magnification of Objective 10X Observation & 40X Measurement

Testing Range 1HV～2967HV

Loading Control Automatic(loading, dwell, unloading)

Hardness Indication LCD display

Dwell Time 5～60s

Illumination Halogen Light-source (LED is optional)

Printer Built-in Mini-printer

Max of Height of Specimen 70mm

Max.

depth of specimen 95mm

Accuracy Conforms to EN-ISO 6507 ASTM E384

Power Supply 110V/220V, 60/50Hz

Instrument Dimension 425×245×490mm

Plywood Packing Dimension 530x450x750mm

Gross/Net Weight 50/40Kg

Standard accesory

Main Unit; Auto-Turret;

Vickers Indenter; Standard Vickers Blocks;

Objectives 10X, 40X; 10X Digital Eyepiece;

Instrument Level Spare Light Bulb;

Spare Fuse; Thin-piece Clamping Device;

Fine Wire Clamping Device; Precision Clamping Device;

Operation Manual; Build-in Mini Printer;

X-Y anvil size: 100 X 100mm, travel: 25 X 25mm and resolution: 2um.

Optional accesory Knoop Indenter;

25mm Digital micrometer head with resolution 1um;

Unequal Specimen Clamp anvil;

16x Digital Eyepiece;

6.8” LCD Video monitor and USB camera;

1x CCD adapter and CCD camera;

Vickers measuring software
