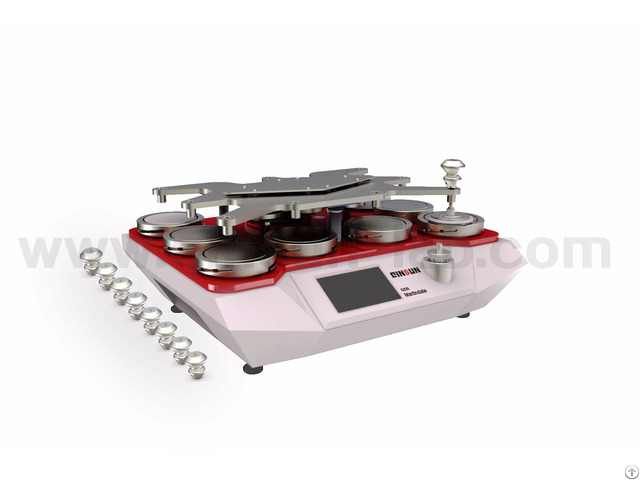

Martindale Abrasion And Pilling Tester - China
price: 10000.00 Dollar US$
Product Information:
The instrument is professionally designed to determine the abrasion and pilling resistance of all kinds of textile structures.
Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.
Provided with Touch Screen Controller and unique programming device which includes preprogammable batch and totaliser counters, individual station counters, 4 selectable test speeds with liquid crystal display.
Technical Parameters:
1 - Test positions: 9;
2 - Count range: 0～999999;
3 - Maximum stroke: horizontal 60.5±0.5mm, longitudinal 24±0.5mm;
4 - Weight of pressurized materials:
a.
Clamp holder assembly: 200±1g
b.
Loading pieces for smaller piece: 395±2g
c.
Loading pieces for larger piece: 594±2g
d.
Stainless steel piece: 260±1g
5 - Additional loading weight valid abradent diameter:
Type A 200g(1.96N) Pressure(9KPa) ￠28.8-0.084mm
Type B 155g(1.52N) Pressure (12KPa) ￠90-0.10mm
6 - The relative speed with Clamp holder and Abrading table: 20-70r/min(Adjustable);
7 - Weight of ample loading hammer: 2385±10g.
Company Contact:
- Posted By: Qinsun Instruments Co., LTD
- Phone: 02164200566
- Address: NO.258 Banting Rd., Songjiang District, China, shanghai , Songjiang , China
- Email:
- Website: https://www.qinsun-lab.com
Published date: April 27, 2016 - Modified date: April 27, 2016
- Business Description: Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.
Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.
