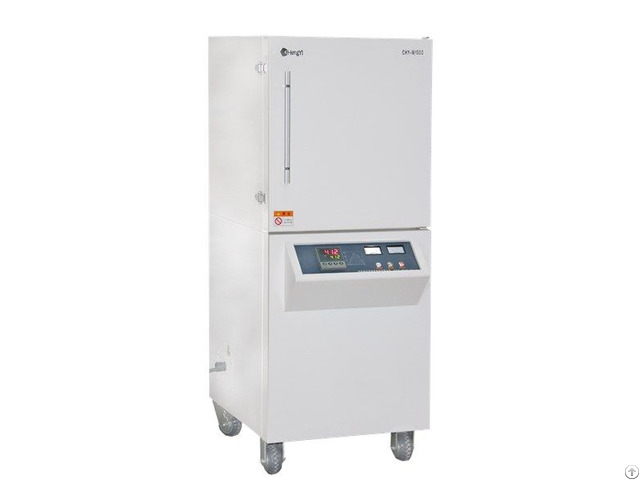

Chy M1730 Laboratory 1700 Degree Muffle Furnace - China

CHY-M1730 Laboratory 1700 Degree Muffle Furnace Laboratory use muffle furnace Laboratory Furnace Manufacturer 1.300*300*400mm chamber dimension

2 - High quality ceramic fiber chamber

3 - PID Programmable controller

4 - Heavy duty double layer structure

5 - Made by Henan Chengyi Rectangular Muffle Furnace APPLICATION

1 - Laboratory heat thermal processing cement, building materials industry etc

2 - Pharmaceutical medicines inspection, preteatment of medical sample

3 - Analytical Chemistry Industry: water analysis and environmental analysis

4 - Analysis of coal quality, determine moisture, ash, volatile matter, ash melting point analysis, gray component analysis, and elemental analysis Muffle Furnace PARAMETERS

1 Product Name 1700 Degree Muffle Furnace

2 Model M1730

3 Furnace Door side open type

4 Display Model Highlight LED display

5 Maximum Temperature 1650℃

6 Working Temperature ≤1650℃

7 Heating rate ≤20℃/min Suggest: 10℃/min

8 Heating zones Single heating zone

9 Hearth dimensions 300mm×300mm×400mm

10 Hearth volume 36L

11 Control mode Intelligent PID auto control

12 Temperature Accuracy ±1℃

13 Temperature curve 30 segments programmable

14 Over heat alarm Have

15 Overcurrent protection Have

16 Thermocouple Failure Protection Have

17 Temperature Sensor B-type thermocouple

18 Heating Element MoSi2 Heating Rod

19 Hearth Material high purity alumina fiber

20 After-sales service 12 month warranty, durable maintaince and repair support

21 Power Supply 220V 50HZ

22 Rated power 12.5kw

24 Packing 3-ply wooden case

25 Accessories Plate, Protective Glove, Crucible Tong, Crucible, Door Block, Heating Element, Temperature Sensor, User Manual.
