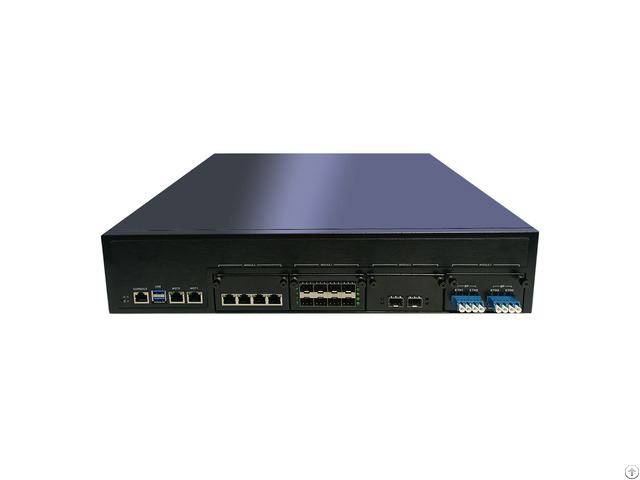

Network Security Appliance With Flexible Nic Rj45 Sfp 10g 40g Qsfp - China

2u network appliance support i7 i9 Xeon W CPU and 4 NMC for Flexible Nic RJ45/ SFP/ 10g SFP+/ 40g Qsfp+ Features

Supports Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor Intel W580 chipset(Rocket Lake family) Four 288pin 2933/3200MHz DDR4 slots, up to 128GB Two Intel 2.5G GbE port, Intel ethernet controllers, supports three channels bypass Four extension NMC slot for one NIC with more network RJ45/ SFP/ SFP+/QSFP+ interfaces Supports SATA3.0, mSATA, M.

2 multiple storages options Front USB3.0, Console interface and LED indicators Specifications

Motherboard

CPU Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor Chipset Intel W580 System memory Four DDR4 slots, up to 128GB Storage

Interface Two SATA3.0 connectors, one mSATA and one M.

2 slot Hard Drive Supports two 3.5/2.5" HDD tray Ethernet

LAN Port Two 2.5G RJ-45 ports Ethernet Chip Intel® Ethernet Controller I225-V Extension ports Max 32 ports, extending by NMC slots Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED System I/O

USB Two USB3.0 COM One RJ-45 COM Indicator One Power LED, one HDD LED Video Built-in one VGA interface, support hot plug(Internal) NMC slots Four NMC slots for extension NIC Expansion PCIEx8 slots Power supply

Power consumption 250W power supply Power input 100 ~ 240V AC input Optional DC power or Redundant power Environmental

Mounting Supports rack-mounting or desktop-mounting Operate Temperature -10°C ~ 50°C Storage Temperature -20°C ~ 75°C Operate Humidity 5% ~ 85% non-condensing @ 40°C Storage Humidity 5% ~ 95% non-condensing Mechanical

Chassis Color Black or OEM Front panel PVC (OEM/Neutral) Construction 1u chassis, Heavy duty metal Dimensions (D x W x H) 500x440x88 mm Weight 11.9 kg Ordering informations

F58224 Network security appliance, 2u rackmount chassis, motherboard based on W580 Chipset, 2x 2.5G RJ45, 4x NMC slots, 250W PSU F58224-P2 Network security appliance, 2u rackmount chassis, motherboard based on W580 Chipset, 2x 2.5G RJ45, 4x NMC slots, 550W redundant PSU Optional NIC modules

35N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers 35F4 4 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers 35NF4 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers 35N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers 35F8 8 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass 59W2 2 10G SFP+ LAN ports NIC module Lan card based on Intel 82599ES controllers 59B2 2 10G SFP+ LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass 71W4 4 10G SFP+ based on Intel XL710 controllers
