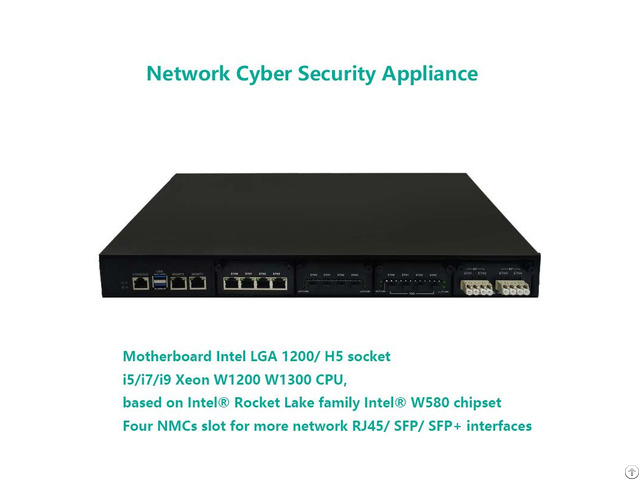

Network Cyber Security Appliance Based Socket Lga 1200 H5 I9 Xeon W1200 W1300 Cpu 4nmc Slots - China

Network Cyber Security Appliance based socket LGA 1200 H5 i9 Xeon W1200 W1300 CPU 4NMC slots

F58214 is a 1u Network cyber security Appliance support socket LGA 1200/ H5, I7 I9 Xeon W1200 W1300 CPU, 1u rackmount chassis, Its motherboard with W580 Chipset, Supports SATA3.0, mSATA, M.

2 multiple storages options and 4 DDR4 RAM slots MAX 128G RAM.

2x 2.5G RJ45 GbE, 4 NMC slot, 250W PSU or 450W redundant PSU.

It has high performance and flexibale extension and usually deploys into projects as network and cyber security including Unified Threat Management, IPS, IDP, SSL VPN, Load Balancing, Bandwidth Manager, Firewall, Bandwidth Management, Gateway security, WAN acceleration, Network Access Control, Web Filter, AntiVirus Wall, Core Switch, Server Load Balancing, Anti-Spam.

network cyber security appliance gallery Motherboard CPU Intel Gen10/Gen11 i3/i5/i7 Core, Xeon W-1200/1300 processor

Chipset Intel W580

System memory Four DDR4 slots, up to 128GB

Storage Interface Two SATA3.0 connectors, one mSATA and one M.

2 slot

Hard Drive Supports one 3.5/2.5" HDD tray

Ethernet LAN Port Two 2.5G RJ-45 ports Ethernet Chip Intel® Ethernet Controller I225-V Extension ports Max 32 ports, extending by NMC slots Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED System I/O USB Two USB3.0 COM One RJ-45 COM Indicator One Power LED, one HDD LED Video Built-in one VGA interface, support hot plug(Internal) NMC slots Four NMC slots for extension NIC Expansion PCIEx8 slots Power supply Power consumption 250W power supply Power input 100 ~ 240V AC input Optional DC power or Redundant power Environmental Mounting Supports rack-mounting or desktop-mounting Operate Temperature -10°C ~ 50°C Storage Temperature -20°C ~ 75°C Operate Humidity 5% ~ 85% non-condensing @ 40°C Storage Humidity 5% ~ 95% non-condensing Mechanical Chassis Color Black or OEM Front panel PVC (OEM/Neutral) Construction 1u chassis, Heavy duty metal Dimensions (D x W x H) 570x440x45 mm Weight 10.6 kg Ordering informations F58214 Cyber Network security appliance, 1u rackmount chassis, motherboard based on W580 Chipset, Intel LGA 1200 socket, 2x 2.5G RJ45, 4x NMC slots, 250W PSU F58214-P2 Cyber Network security appliance, 1u rackmount chassis, motherboard based on W580 Chipset, Intel LGA 1200 socket, 2x 2.5G RJ45, 4x NMC slots, 450W redundant PSU Optional NIC modules 35N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers 35F4 4 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers 35NF4 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers 35N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel I350 controllers 35F8 8 GBE SFP LAN ports NIC module LAN card based on Intel I350 controllers 58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass 59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers 59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass 71W4 4 10G SFP based on Intel XL710 controllers
