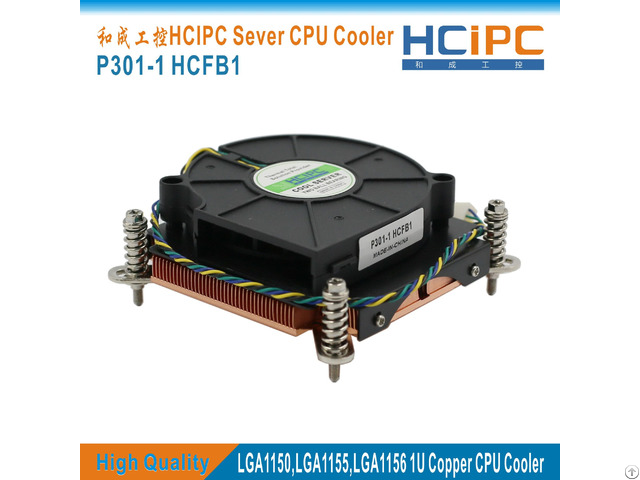

Hcipc P301 1 Hcfb1 Socket Lga115x Lga2011 Lga1366 Cpu Cooler Cooling Fan - China

Serial No.

P301-1

Model HCFB1

Basic Information

CPU Socket LGA755/1150/1155/1156/136 6/2011

Solution 1U Server solution

Full Size 81*81*27MM

HintSink Size 81*81*12MM

Mounting hole distance LGA1150/1155/1156: 75*75MM

LGA1366/2011: 80*80MM

LGA2011 Rectangle : 94*56MM

Core Area 40*40*3MM

Fin QTY 54±1

Fin Height 6MM

Material Vapor Chamber Base with T2 Copper Stacked Fin

Fan information

Fan Size 75*75*10MM

Bearing 7015 Dual Ball Bearing

Speed 2000-5000RPM

Rated Voltage 12V

Rated Current 0.28A

Wire Pin Out 4Pin

Length 20CM

Weight and Package

Net Weight 332g

Gross Weight 406g

Package Size 10*10*5CM, 1Box 1pcs

Remarks

Bracket Change bracket to make LGA755/1150/1155/1156/136 6/2011
