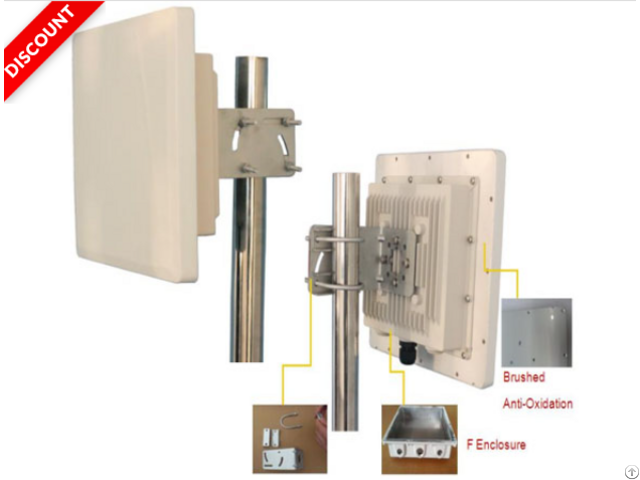

Dual Polarization Enclosure Antenna Drc 5159 19d17f - China
price: contact company for price
Application ●5.1-5.8GHz 802.11a/802.11n WLAN System ●Point to Point Wireless Bridge ●Wide 17° Horizontal Beamwidth ●IP66 Waterproof Level ●UV Protected and Durable ABS Radome ●Stainless L Type Bracket, U-Slot & U-Bolt Frequency Range 5150-5850 MHz
Gain 19 dBi
VSWR ≤1.5
3dB Beam-Width 17°(H)/18°(E)
Polarization Vertical & Horizontal
Upper Side Lobes >13 dB (V Port), >10 dB (H Port)
Front to Back Ratio ≥30 dB
Port to Port Isolation >35 dB
Maximum Input Power 100 Watt
Impedance 50 Ω
Lightning Protection DC Grounded Connector 2 × N Female
Inner Space 212.6×212.3×38 mm
Antenna Dimension 270×270×80 mm
Weight 2.5 KG
Radome Material UV Protected ABS
Enclosure Material Aluminium Die Cast
Mounting Mast Diameter Ø40~Ø60 mm
Operating Temperature -40° C to +65° C
Rated Wind Velocity 216 Km/h
Company Contact:
- Posted By: Wallys Communications (SuZhou) Co.,
- Phone: 15189725935
- Address: 116 ChengYang Road, XiangCheng Dist, suzhou , jiangsu, China
- Email:
- Website: https://www.wallystech.com/
Published date: January 24, 2022
- Business Description: With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and wireless network cards.
In the complex market, Wallys products stand out and are affirmed by partners.
From 802.11 a - ax, Wallys always keeps up with the most cutting-edge wireless technology, aimed to help customers take the preemptive opportunities to occupy the market and lead a win-win cooperation.
