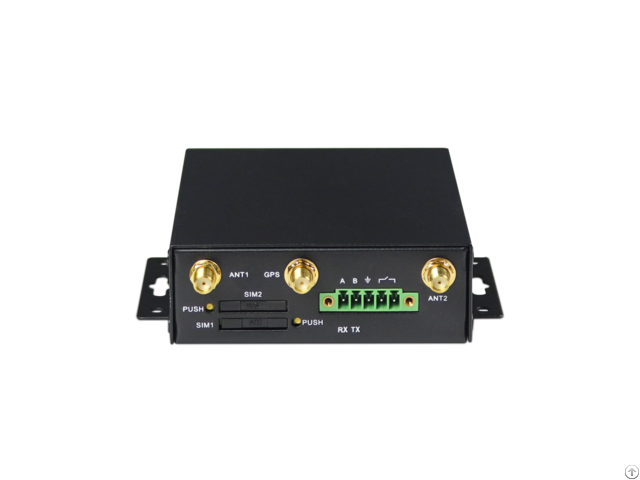

W421 A Cellular Eth Router - China

Hardware Specifications:

·2* 10/100Mbps Ethernet ports ·2* SIM card slot (backup/failover)

·2* 4G antenna ·1* FUNC button ·1* GPS antenna(optional) ·1* 3 standard core power interface

·4G/3G/2G access (The frequency bands could be customized)

·Dimension: 179mm*135mm*34mm

·Structure design: the high-duty metal case

·Power consumption: ≤24W

·Input: DC12V/1.5A

·Operating temperature: -40～+85°C

·Operating humidity: 10～95%RH

·Store temperature: -40～+85°C

·Installation: desktop, wall-mounted, slideway Key features: ·Various network protocols: TCP/IP, UDP, HTTP, TELNET, ICMP, DHCP, PPPoE, DNS etc.

·Port setting: Port Mirroring, Flow Statistics, LAN and WAN Port Setting

·Multi-WAN Function LTE+SFP Fiber+Ethernet Load Balancing WAN Load Balancing: Bandwidth Occupancy, WAN IP Tracing WAN Bandwidth Percentage Display LAN IP Statistics Detecting Online: ICMP Detecting, ICMP Detecting ·Static routing and dynamic routing of RIP/OSPF/BGP

·PWE3, VPLS, L3 VPN

·QoS: packets priority, traffic policing, traffic shaping, rate-limiting

·Centralized network management of CLI, WEB and SNMP

·NAT function

·ACL function

·Firewall, packet filtering etc

·VPN functions: GRE, L2TP VPN, IPSec VPN, EOIP VPN, MPLS VPN etc.

(VPN optional, GRE over IPSec, IPsec over L2TP.

)

·802.1Q VLAN and QinQ

·Link detective functions such as BFD, DLDP(switch to backup link according to detective result quickly)

·Log function
