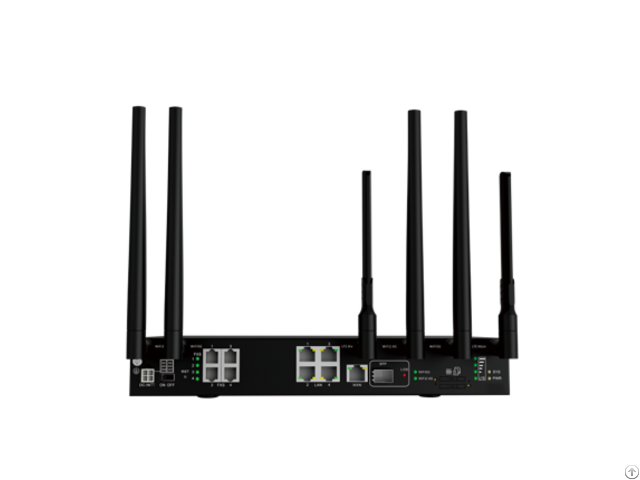

W3604 Multi Wan Dual Wifi Voip Enterprise Gateway - China

Highlights: ·4*GE LAN + 1*GE WAN + 1*SFP + 4*RJ11 + WiFi + LTE ·SIP Based VoIP ·WiFi N + WiFi AC Dual Bands ·LTE as Backup Link ·Failover between LTE, Ethernet and SFP ·VPN: L2TP, PPTP, IPSec ·Local and Remote Management ​ LTE · LTE CAT4 Download: 150Mbps Upload: 50Mbps · Antenna: 2 x External Omni-Directional · LTE Features: Switch Frequency Band, Dual-APN, Lock/Switch PLMN, Lock Sim Card · Multi Bands Combination: Q1: LTE FDD Band: 1/3/5/7/8/20/28 LTE TDD Band: 38/40/41 WCDMA: 1/5/8 GSM: 3/5/8 Q2: LTE TDD Band: 2/4/5/12/13/14/66/71 WCDMA: 2/4/5 ​ Interface ·WAN: 1x10/100/1000Mbps Ethernet port 1x100/1000Mbps SFP Port ·LAN: 4x10/100/1000Mbps Ethernet Port ·4*FXS Port ·1*4-Pin Power Supply ·2*SIM Card Slot ·Button: Power, Reset Data Functions ·WAN Type: Static, DHCP, PPPoE, L2TP, PPTP ·Networking Interface Multi-WAN, Bridge Mode, 802.1Q ·Advanced Routing Static Route, Policy Route ·Internal Address Management: DHCP Server, DHCP Relay ·Networking Protocols TCP/IP(IPv4/IPv6), UDP, RTP, SNTP, NAT, DHCP, DNS, DDNS ·VPN: L2TP, PPTP, IPSec

·Routing Static Route, Policy Route, RIP, BGP, OSPF ·IPTV: IGMP Proxy/Snooping, IPTV Bridge ·Failover between wired and LTE connections ​ WiFi · IEEE 802.11b/g/n (2.4Ghz) IEEE 801.11 AC (5Ghz) · Security: WEP, WPA, WPA2, WPA-PSK, WPA2-PSK · WiFi Features: WMM, WLAN-LAN Isolation, Multi SSID(X4), AP Isolation · Antenna: 2R2T WiFi b/g/n & 2R2T WiFi AC · WiFi Speed: WiFi n: 300Mbps WiFi AC: 866Mbps Firewall & Security · Firewall Protection: IDS&IPS, Block Ping/ICMP/IDENT, IP and MAC Address Binding, SPI Firewall, Port scan restriction · Access control: Blocking by URL, IP Address, Mac Address, ·Protocol Type or Port · QoS: Based on Destination/Source IP/MAC, Application, DSCP, Packet Priority, Bandwidth · NAT: Port Forwarding, DMZ, ALG Voice Features · G.

711Alaw, G711mulaw, G.

723, G.

729 · SIP Protocol and T.

30/T.

38 fax · Billing mode: Reverse Polarity · Voice Functions:

Caller detection and Caller ID, Call waiting, No-Not-Disturb, Call transfer, Call forward, abbreviation dial, 3-Way Conference, etc.

Echo Cancellation, Silence Detection/Suppression ​ Management · Management Protocol WEB, Telnet, SSH, SNMP v1/v2, TR069 Environmental · Dimension: 293 x 150 x 44mm · Net Weight: 1.5kg · Power Supply: 12V/2A · Operation Range: 0° to 40°C, 32°to 113°F · Humidity: 10%-90%, non-condensing
