R Tv Box S10 Rockchip Rk3328 - China

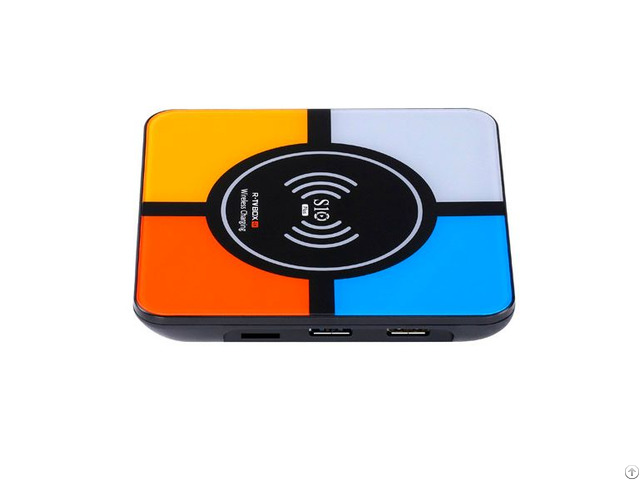

R-TV BOX S10 Rockchip RK3328

Multi-Funtion Wireless Charging Voice Control Intellegent Andoid TV Box

Alluminum Pannel for good heatsink to properly implement high performance of the unit.

Are you finding smart TV BOX Rockchip Supplier? If this is the case, we will be your best choice! Kinds of 4GB smart TV BOX Rockchip, 8GB Android rockchip TV box waiting you to choose.

Contact us immediately and we will give you a preferential ex-factory price.

More information you can views here.

Hardware:

Chipset RK3328 Quad-Core 64bit Cortex-A53

GPU Penta-Core Mali-450 Up to 750Mhz+

OS Android 8.1.0

RAM 4GB

ROM EMMC 32GB

WiFi 2.4G 802.11 b/g/n

Main Features:

Support Decoder format 4K VP9 Video decoder, H.

265/H.

264 video decoder

1080P other video decoders (VC-1, MPEG-1/2/4, VP6/8)

Support Media format Avi/Ts/Vob/Mkv/Mov/ISO/wm v/asf/flv/dat/mpg/mpeg


Support Music format MP3/WMA/AAC/WAV/OGG/DDP/H D/FLAC/APE

Support Photo format HD JPEG/BMP/GIF/PNG/TIFF

HDR HDR10 and HLG modes

USB host 1*High speed USB 3.0 3*USB 2.0

Card reader TF cards

HDD file system FAT16/FAT32/NTFS

Support Subtitle SRT/SMI/SUB/SSA/IDX+USB

High Definition video output 4K (4096x2160 pixel )

OSD type of languages English/French/German/Spa nish/Italian/etc multilateral languages

LAN Ethernet: 10/100 standard RJ-45

2.4G Remote Control Built in 2.4G Remote Control for Option

Mouse/ Keyboard Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle

HDMI HDMI 2.0a for 4k60Hz

3D 3D video formats

AV Support

Wireless charging Specifications:

Chipset AT7909 solution

Input voltage 9V VDC+/-5%

Rated input current 9V-3A

Required input Ripple voltage <150mVp-p 3.0A 9V

Output Max Power 10W

WPC QI Compliant WPC 1.2.4 BPP (Apple 7.5W /Samsung 10W)

Switching frequency 127.7KHz/110KHz ~ 148KHz

Efficiency 80%-85% 10W with T10 tester

Ambient operating Temperature 0 to 35°C

Over current protection Yes

Thermal protection Yes Effective Charging Area TYP.

+/-5mm from coil center (Dz=3mm)

Best Charging Distance TYP.

+3~6mm from Tx-coil to Rx-coil

FOD Edge of the coin(1RMB) is extended within the coil

TX Coil Module or base on QI Standard

Power Coil Inductance: 6.3uH +/-10%

Power Coil Resistance: DC: <45m ohm

Software Specifications:

Other feature Free Internet searching, thousands of android applications, many kinds of games, etc.

Accessories Power adaptor, HDMI cable, user manual, remote

Option Support mouse and keyboard via USB; Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle

HDMI cable HDMI cable*1

Air mouse optional

wireless mouse optional
