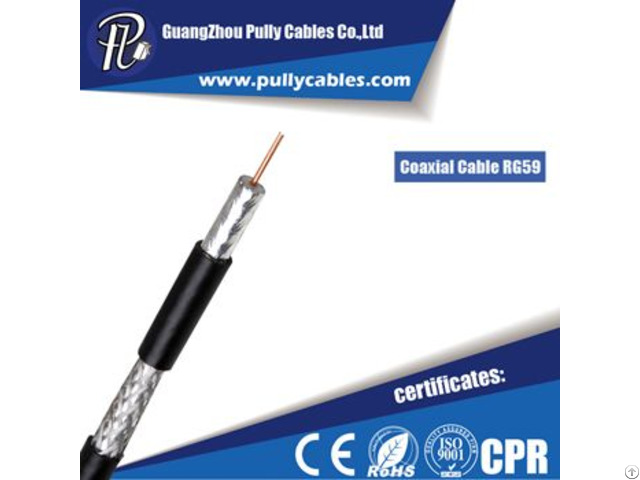

COAXIAL CABLE RG59 RG59 Coaxial cable is designed for low-power video and RF signal connections, and also often used at baseband video frequencies, such as composite video.

The cable has a characteristic impedance of 75 ohms, and does not keep a high Gigahertz level.

so it cant use over long distance duo to its high-frequency losses.

RG59 coaxial cable is most common in consumer settings such as with VCRs, Television, digital cable, and satellite.

SPECIFICATIONS:

Conductor TC/BC/Copper Clad Steel(CCS 23%))

Conductor Dia.

20AWG

Insulation FPE

Insulation Dia.

3.66 mm

Shielding Aluminium Foil

Braid Shielding TC/BC/CCA/AL

Braid Coverage Area (%) 90%

Jacket PVC

Jacket Dia 6.0±0.2mm

Colors Optional

Length& Package 100/200 with PE film Packing 305m/500m with wooden reel packing
