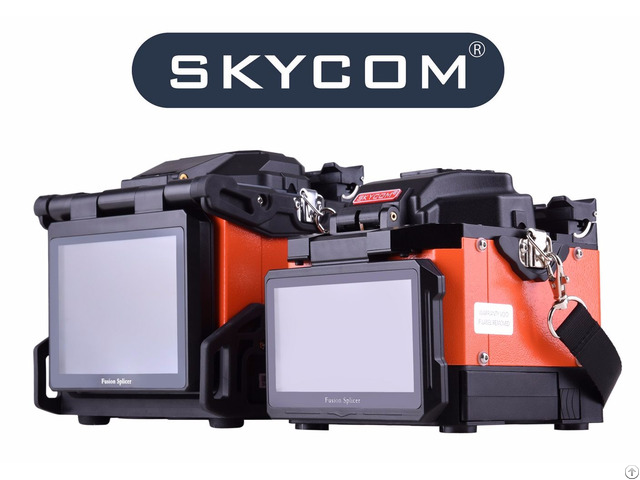

Skycom Next Generation Fiber Fusion Splicer T 307 Series - China

Skycom is proud to present the T-307 series of Optical Fiber Fusion Splicer, which incorporate key performance features expected in an advanced next generation fusion splicer:

High Speed Splicing and Heating, 6 seconds Rapidly Splicing, 15 seconds Quick Heating

Greater Accuracy

Digital Imaging and Vision Processing Metrology Ensure Great Accuracy

New Developed Technology for Smaller Size and Convenient Multipurpose Clamps.

Model Skycom T-307

Applicable Fibers SM, MM, NZ-DS, EDF, Pigtail, Drop Cable (rubber-insulated wire), SC/LC/FC connector (optional function)

Average Splice Loss 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)

Return Loss ≥60dB

Quick splicing time 6 seconds

Quick heating time 15 seconds

Splicing Program 50 groups

Protection Sleeve Length 40mm, 45mm, 60mm

Operating Language Chinese, English, French, Portuguese, Spanish, Russian

Operating Conditions -10~+50°C(operation temperature), 0~95% RH(humidity), 0~5000m(altitude)

Power Supply AC input AC adaptor: 100~240V input voltage, 50/60Hz; DC input 12V, 5A output voltage(DC) Battery Inner lithium battery: 11.1V, 5.2 AH, Up to 220 times splice and heat

Monitor Dual cameras, 90︒bi-dirctional view, 4.3 inches high resolution colorful LCD display

Fiber Image Magnification X or Y Separately 520 times or Simultaneously 200 times

Estimated Splice Loss Available

Cleaving angle detection Available

Automatic setting camera Available Forward motor Tension Test 1.96~2.25N

Storage of Splice Result 6, 000 groups of latest splice results

Splicing Model Auto & Manual & Full Auto & Stepping

Optical Fiber Fixture 3-in-1 cutting fixture; Multipurpose 1+N fixture (for SC/LC/FC connector)

Terminal USB for Memorizing and Updating, Mini-USB

Dimensions 120(W)*120(D)*130(H)mm, Package: 43*32.5*26.5cm


Weight 1.29kg(without battery pack), Package G.

W: 8kgs
