Mtp Mpo Trunk Cable Assemblies - China

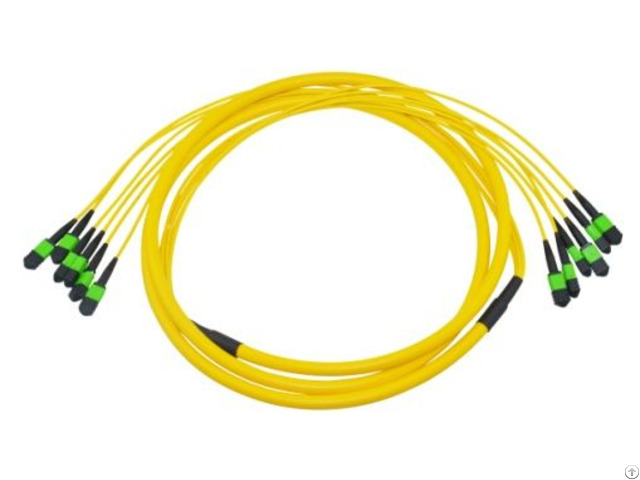

MTP/MPO Trunk cable is good for fast data center or fiber infrastructure implementation.

It is used to bridging among MTP/MPO cassette or fan out fiber patch cable among MDA, HAD and EDA.

The high efficient plug and play patch cable structure remarkably reduced the initial installation and daily maintenance cost.

Tarluz MTP/MPO trunk cable adopts selected fiber cable and MTP/MPO components, with low insertion loss, high return loss, fully meet the requirement of high speed data network.

Features

1, Choice of either both ends with pins (Male) or both ends without pins (female)

2, Round & mini-core cable structure to eliminate bend sensitivity and save space

3, PVC, LSZH, OFNR, OFNP cable jacket available

4, Fiber counts available in 12, 16, 24, 36, 48, 72, 96, 144 fibers

5, Available in single mode G 652D and G 657 A1/A2/B3, or multimode OM2, OM3, OM4 and OM5

6, Optional pulling hook design to fit for different installation environment

7, All patch cable are 100% tested, test report supplied with each cable assembly

8, Tests including Interferometer, Insertion Loss, Return Loss and Visual Final Inspection; all measured values are electronically archived

Standards Compliance

1, TIA/EIA-568-C

2, IEC-61754-7

3, NFPA 262 (OFNP) or IEC 60332 (LSZH)

4, IEC-60793

5, GR-1435-CORE

Applications:

1, Backbone installation

2, Optical switching interface connections

3, High fiber density card edge access

4, Array trunk cables

5, Datacenter cabling

Company Contact:

• Posted By: SHANGHAI TARLUZ TELECOM TECH. CO., LTD

• Phone: 0086-21-54475318

• Address: 3F, Building 1, No. 2528 Zhennan Road, Putuo District 200331, Shanghai China., shanghai , shanghai , China

• Email:

• Website: http://www.tarluz.com

• Business Description: TARLUZ is a leading fiber optic manufacturer based in Shanghai of fibre optic and networking products with full manufacturing facilities, dedicated in serving Telco, ISPs, Cable TV providers, Contractors, Engineering company etc all over the world.

  Tarluz designs, develops, manufactures and sells fibre optic cabling, connectivity, management and systems solutions.

  We offer a broad range of products directly and through distributors, installers and OEM partners.

  The product range includes MTP MPO Fiber Optics, PON Passive Optic Network, Fiber Optic Test Equipment, Fiber Optic Splicing, Cable Management, Fiber Optic Cable, Tools and Tool Kits.
