Glsun C1x2g Fiber Optical Switch - China

Product Description

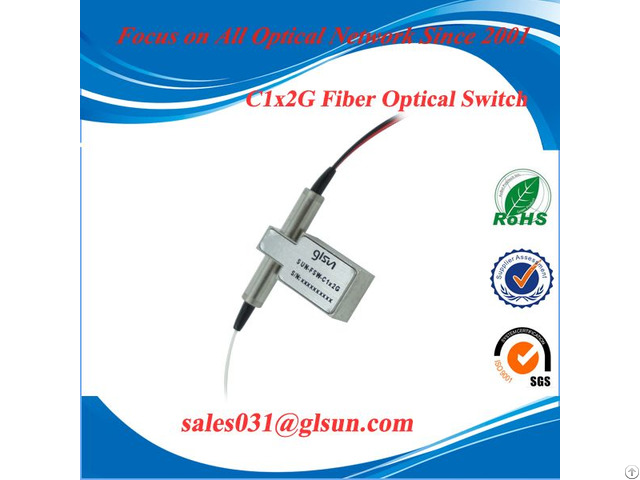

GLSUN C1x2G Fiber Optical Switch

Features

Low Insertion Loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching Applications R&D in Laboratory

System Monitoring

OADM

MAN (Metropolitan Area Network)

Network Security and Monitoring Specifications Parameters Unit SUN-FSW-C1×2G

Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650

Test Wavelength nm 850 / 1300 1310 / 1550

Insertion Loss 1, 2 dB Typ: 0.6 Max: 0.8

Return Loss 1, 2 dB MM ≥ 30 SM ≥ 50

Crosstalk 1 dB MM≥ 35 SM≥ 55

PDL dB ≤0.05

WDL dB ≤0.25

Repeatability dB ≤±0.02

Operating Voltage V 3.0 or 5.0

Durability Cycles ≥10 Million

Switching Time ms ≤8

Optical Power mW ≤500

Operating

Temperature

℃ -20 ~ +70

Storage

Temperature

℃ -40 ~ +85

Relative Humidity % 5 ~ 95

Weight g 13

Dimension mm (L)27.0×(W)12.6×(H)8.2 ±0.2

Note: 1 Within operating temperature and SOP.

2 Excluding connectors.

Company Contact:

• Posted By: GLsun Science And Tech Co., Ltd.

• Phone: 86-773-3116006

• Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China

• Email:

• Website: https://www.glsun.com/

• Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.

  GLSUN holds many technical patents on optics.

  Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.

  Since its establishment, GLsun has striven to be an innovative and advanced technical company.

  The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.

  GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.

  The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
