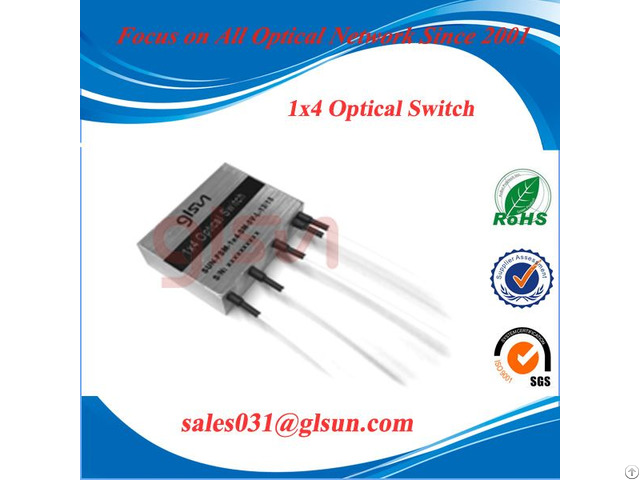

Glsun 1x4 Fiber Optical Switch - China
price: 500.00 Dollar US$
INTRODUCTION: Features ·Low Insertion Loss ·Wide Wavelength Range ·Low Crosstalk ·High Stability, High Reliability ·Epoxy-free on Optical Path ·Latching and Non-latching Applications ·R&D in Laboratory ·System Monitoring ·OADM ·MAN (Metropolitan Area Network) ·Network Security and Monitoring Specifications
Parameters
Unit
SUN-FSW-1×4
Wavelength Range
nm
850±40 / 1300±40
1260 ~ 1650
Test Wavelength
nm
850 / 1300
1310 / 1550
Insertion Loss 1, 2
dB
≤1.0
Return Loss 1, 2
dB
MM ≥ 30 SM ≥ 50
Crosstalk 1
dB
≥ 55
PDL
dB
SM ≤0.1
WDL
dB
≤0.25
Repeatability
dB
≤±0.02
Operating Voltage
V
3.0 or 5.0
Voltage Pluse Width(Latching)
ms
≥ 20
Durability
Cycles
≥ 10 Million
Switching Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature
℃
0 ~ +70
Storage Temperature
℃
-40 ~ +85
Relative Humidity
%
5 ~ 95
Dimension
mm
(L)33.5×(W)25.5×(H)9 .
5 ±0.2 Note: 1 Within operating temperature and SOP.
2 Excluding connectors.
Company Contact:
- Posted By: GLsun Science And Tech Co., Ltd.
- Phone: 86-773-3116006
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , GuangXi , China
- Email:
- Website: https://www.glsun.com/
Published date: April 24, 2018
- Business Description: Founded in 2001, GLsun Science and Tech Co., Ltd , Guilin, China, designs, develops, manufactures and markets advanced optical components and modules.
GLSUN holds many technical patents on optics.
Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
Since its establishment, GLsun has striven to be an innovative and advanced technical company.
The companys optical components and custom modules have been deployed to various applications and sub-systems in market segments such as Network Monitoring & Protection, Network Intelligence & Analytics, Service Providers and Network Test Sub-systems.
GLsun has been growing rapidly and has now become one of the largest Optical Switch & component manufacturers in Asia today.
The company is well reputed and widely perceived as top quality, cost-effective, Pro-active customer service and technically innovative.
