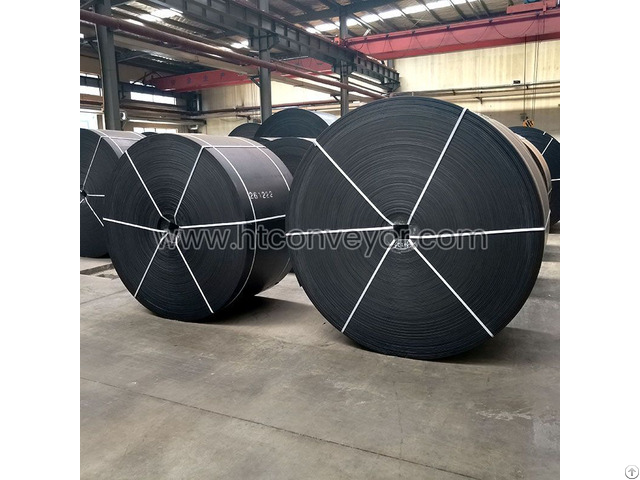

Hengtuo Steel Cord Conveyor Belt - China

HENGTUO Steel cord conveyor belt has high tensile strength, low elongation and good fatigue resistance; Steel cord conveyor belt for general use is widely used in coal, mine, port, metallurgy, power, chemical industries and suitable for high strength, long distance and heavy load transportation of materials.

Further, the finish standards these are made available in include EN ISO 15236, DIN22131, SANS1366 Steel Cord Conveyor Belt Construction:

Steel Cords: steel cords at certain arrangement which become the main tension holder of belt.

Special High carbon content steel strand cords with special heat treatment, which makes the cord highly resistant to breakage and repeated dynamic stresses as well as highly flexible.

Warp cords are galvanized and fully embedded in rubber.

Twist cord alternating right and left hand to ensure the belt go straighty.

Rubber Cover: top rubber cover + bottom rubber cover, protect the carcass from abrasion, impact, water and other injurious influ-ence.

Rip Stop or Transverse Reinforcement: one or two steel breaker

(No need for normal usage) Features and Advantages of Steel Cord Conveyor Belt

●High tensile strength: steel cord conveyor belt is suitable for transferring materials with long distance, high intensity and large load.

●Small elongation in use: a very short take-up stroke distance needed.

●High adhesion between rubber and steel cord : the steel cord are coated with zinc on the surface, highly adhered to the special core rubber to resistant to heavy impact.

●Good troughability: as the belt body has no transverse carcass, it is easy to form a deep trough to load more materials without leak.

●Small diameter of driving pulley: the belt body had a layer of longitudinally arranged steel cords as its carcass to resistant to flex fatigue.

Therefore, driving pulley with smaller diameter can be used to reduce energy consumption.

●Even tension of steel cords: thanks to our advanced techniques in manufacturing, the steel cords are evenly arranged with the same tension, so the belts are well balanced in running and difficult to run away.

Company Contact:

• Posted By: Hangzhou Hengtuo Machinery Technology Co.,LTD.

• Phone: 8615757732226

• Address: Room 721, Building 1, Beichen Jinzuo, Renhe Street, Yuhang District, Hangzhou , Zhengjiang , China

• Email:

• Website: https://www.htconveyor.com

• Business Description: Founded in 1998, the HENGTUO Group has grown to be a leading partner to the global materials handling industry.

  HANGZHOU HENGTUO is headquartered in the beautiful City Hangzhou , Zhejiang Province.

  We has more than 60000 square meters of modern standardized factory, more than 20 experienced bulk conveying equipment and system R & D and design engineers.

  With over 20 years of experience in providing engineered material handling solutions, we’re ready to work to meet your needs.

  All of our conveyor parts are fully traceable.

  We supply to over 60 countries worldwide meeting many different recognized standards.

  We are certified to ISO 9001: 2015 Quality Management System standards.

  Our goal is to provide solutions that will produce profits for your business.

  If we cannot perform this task, we have no value to offer.

  WHAT WE DO?

  We manufacture, convert and distribute belt conveyor and associated products.

  HANGZHOU HENGTUO is among the leading companies in the conveying systems market specializing in the design, manufacturing, sales and after-sales services of rubber conveyor belt, conveyor rollers/idlers,conveyor pulleys, and other related of conveyor components in China.

  Our products and services has been widely adopted by worldwide Coal mines, Cement, Sand, Steel works, Quarry plants, Construction, Glass, Chemicals , Agricultural ,Wood industry and so on.

  Belts are available in variety uses from width 300mm to 4000mm , belt thickness ranging 4mm to 50mm, and minimum length as 30 meters.

  The annual output of rubber conveyor belts are up to 1.8 millions meters.

  Rollers are available in steel, rubber impact and HDPE in diameters ranging from 76 mm diameter to 219 mm diameter in shaft series from 25mm to 50mm up to 3500mm long.

  Standard idler frames are from 450 mm to 2400 mm Belt Widths, as well as numerous unique frames to solve a variety of conveyor challenges.
