Tp316l Asme Bpe Sanitary Fittings 20ra Mechanical Finish 2 X 0 065 - China

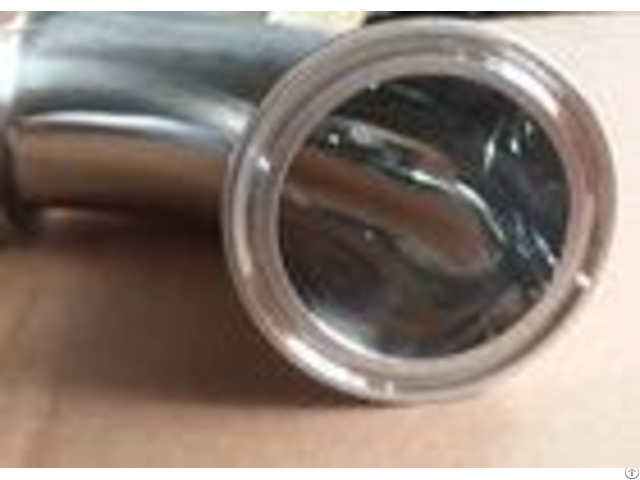

TP316L Stainless Steel ASME BPE Sanitary Clamp 90 Elbow, 20RA Mechanical Finish, 2'' X 0.065'' Features: Spezilla's ASME BPE Sanitary Clamp 90 Elbowis made specifically for the Pharmaceutical and Biotech Industries where joint cleanliness and efficiency are of paramount importance.

These stainless steel sanitary fittings and clamps are made from investment castings to produce a high quality, precision fit assembly.

The clamps are designed to provide quick access to the joint for cleaning and inspection without sacrificing safety.

Material and Traceability All fittings are permanently marked with original heat numbers for full traceability back to the original material supplier.

MTR information is provided with each fitting.

All tubular materials meet ASTM A269/ A270 requirements and all machined components meet the requirements of ASTM A479 - Fully documented ASME-BPE conformance certification is available upon request.

Heat Treatment Spezilla fittings are solution annealed and quenched in a vacuum furnace.

This treatment relieves stresses caused by cold forming operations used in the manufacturing process, thereby removing the potential for stress corrosion and improving the dimensional stability of fittings.

Polish Options I.D. finishes will be available in 10RA through 32RA.

I.D. finishes may be provided in mechanical polish, or with Electropolishing per ASME BPE specifications.

Optional finishes and treatment available upon request.

O.D. finishes will be 32RA unless otherwise specified.

Marking Standards Each fitting is marked with the following: Name Heat Number Material Alloy ASME BPE Surface Designation per ASME BPE Inspection Procedures Fittings are visually inspected for surface finish imperfections as mentioned in table SF-3 in the ASME BPE 2005 specification.

Additional percentages of every manufactured batch undergo a thorough dimensional evaluation with a 0% tolerance for failure.

As a part of rigorous inspection standard, heat number traceability is verified for accuracy and chemical composition, per table DT-3, before the fittings are packaged for shipment.

Testing includes: Roundness Wall Thickness Squareness of Face Off Angle Off Plane Height Packaging The ends are capped to prevent damage and contamination.

All fittings are packaged in bags.

All bags are labeled with SpezillaPart Number, Heat Number(s), ASME-BPE, and the appropriate ASMEBPE Surface Finish Designation for reorder, traceability and tracking purposes.

Descriptions: - - - - Item Code: | SPF-WE-316L-S45-0200-065- BPE | OD: | 2'' | Wall Thickness: | 0.065'' | Material: | TP316L | Standard: | ASME BPE / 3A | Finish: | ID/OD MECHANICAL POLISHED | Connection Type: | Clamped | Certification: | 3A | Mill Test Certificate: | EN10204 3.1 | Packing: | Ends Capped | MOQ: | 1PC | Shipment: | FOB / CIF | - - - - Chemical Compositions: - - - - Elements | 316L (wt%) | C / Max.

| 0.035 | Mn / Max | 2.00 | P / Max | 0.045 | S / Max | 0.005 - 0.017 | Si / Max | 1.00 | Ni | 10.00 - 14.00 | Cr | 16.00 - 18.00 | Mo | N/A | Fe | Bal.

| Cu | N/A | N | N/A | - - - - Mechanical Properties: - - - - Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) | Hardness (HRB) | 316L | 485 | 170 | 35 | 90 | - - - - Quality Assurance: 1 - Material Controlled & Machined Precisely.

2 - Easily welded 3 - Quickly fit up 4 - High corrosion resistant 5 - Long service life 6 - Safety Stock System.

7 - Well packaged 8 - Fast delivered 9 - Surface Finish: #180 Grit, #320 Grit Applications: Spezilla'sstainless steel asme bpe sanitary fittings are applicable to a wide range of manufacturing industries: 1 - Biofuels.

2 - Beverage processing 3 - Biotechnology 4 - Pharmaceutical Production 5 - Personal Care
