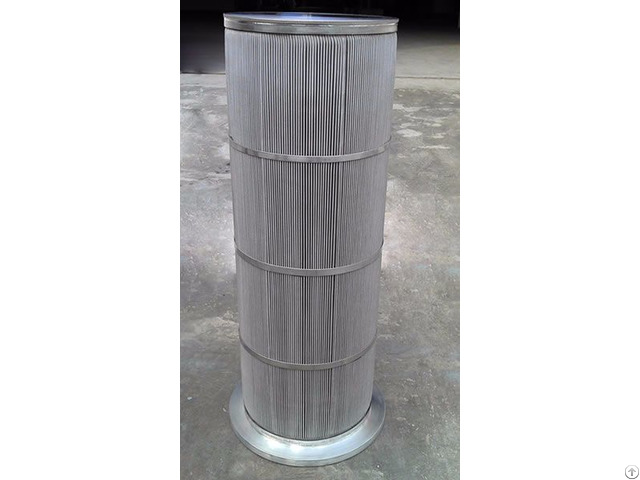

  • Pleated Sintered Mesh Filter - China

    price: 20.00 Dollar US$

    Pleated sintered mesh filter is made of stainless steel wire mesh, or sintered metal fiber felt, which is sintered at each wire contact point to produce a strong surface-sieving porous filter cylinder.

    Moreover, the filter element is pleated design that further provides large filter area, good dirt holding capacity.

    Double open-ended or single open-ended is available as per customers' need, threaded end is often equipped with gasket, like o-ring, to reduce the friction of the corrugated filter.

    Unlike unsintered mesh, pleated sintered mesh filter enables the use of finer wires to produce more pores per unit area for higher contaminant loading capacity.

    On the other hand, pleated sintered filter cartridge is more preferred to replace the PP filter cartridge with its back washing and reusability advantage, in applications of corrosive liquid filtration, oxidizing liquid filtration, liquid and gas filtration, etc.


    Company Contact:


    • Phone: 863185280569

    • Address: East industrial Zone, Anping, Hebei, China, hengshui , hebei , China

    • Email: Email


    Published date: November 19, 2016

    • Business Description: What is sintered mesh?

      Sintered mesh is manufactured from one layer or multiple layers of woven wire meshes by a "sintering" process.

      The single layer woven wire mesh is first roller flattened uniformly, to ensure good contact at the wire cross over points.

      Then the single layer or more layers of this calendered mesh are then laminated by special fixtures under mechanical pressure in high temperature furnace, which is filled with proprietary inset gas and the temperature is raised to a point where sintering (diffusion-bonded) occurs.

      After controlled-cooling process, the mesh has become more rigid, for all the contact points of individual wires bonding to each other.

      Sintering improves the characteristics of woven wire mesh through the combination of heat and pressure.

      Sintered mesh can be single layer or multiple layer, according to filtration need, one layer of perforated metal can be added to reinforce the whole structure.

      What's more, sintered mesh can be cut, welded, pleated, rolled into other shapes, like disc, plate, cartridge, cone shape.

      Compared with traditional wire mesh as filter, sintered mesh has prominent advantages, high mechanical strength, high permeability, low pressure drop, wide range of filtration rating, easy to backwash.

      Although the cost seems higher than traditional filter, but its long using life and excellent properties gain more popularity with clear advantages.

      Our main products include: Five-layer sintered mesh, Sintered mesh laminate, Sintered mesh with perforated metal, Sintered metal filter cartridge, Sintered metal filter disc, Pleated sintered mesh filter, Sintered cone filter, Sintered metal fiber felt.
