Jks400b Crawler Mounted Versatile Well Drilling Rig - China

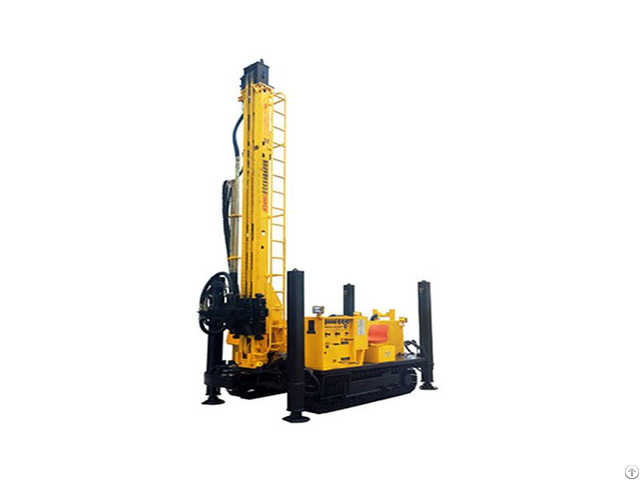

JKS400B Crawler Mounted Versatile Well Drilling Rig

Crawler Mounted Versatile Well Drilling Rig New, efficient and versatile hydraulic drill rig

Rated Drilling Depth

400m

Site Condition

It is mainly applicable to the drilling process of wells, monitor boreholes and geothermal boreholes.

Product Features

JKS400B crawler mounted versatile well drilling rig is a new efficient and multifunctional drill rig, mainly applicable to the drilling process of well, monitor boreholes and geothermal boreholes.

When drilling in the rock layer, the rig adopts DTH percussive hammer for penetration and compressed air for cleaning, the penetration speed being dozens of times quicker than conventional rotation rigs.

In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility suiting for all kinds of complex geological conditions

Winch can lift stuff upwards of 6m, facilitating installing pipes.

Hydraulic supporters facilitate the rig erection on site without crane.

Dimension (L x W x H) 6800mm x 2250mm x 2650mm

Working Size (W x H) 3250mm x 7500mm

Weight 10.5T

Rated Drilling Depth 400m

Borehole Diameter 105～350mm

Engine Power 92kW

Max.

Lifting Force 20T

Small Winch Lifting Force 1.5T

Rotation Torque 9000N.

m

Rotation Rate 0～40/80rpm

Feeding Stroke 3800mm

Lifting Speed 0～18m/min

Centralizer Height 0.7m

Grade Ability 15°

Hydraulic Generator (optional) 24kW/380V

Company Contact:

• Posted By: Zhangjiakou Xuanhua Jinke Drilling Machinery Co., Ltd

• Phone: +8618731372225

• Address: No.142, Zhonglou Street, Xuanhua District, Zhangjiakou City, Hebei , China

• Email:

• Website: https://www.jkdrilling.com/

• Business Description: Zhangjiakou Xuanhua Jinke Drilling Machinery Co., Ltd (JK Drilling) is a large enterprise specialized in development and manufacture of all kinds of DTH Drilling Equipment.

  The major products include All-In-One type and separate type DTH rock drilling rigs, DTH well drilling rigs and construction drilling rigs.

  The DTH rock drilling rigs are widely used in blasthole drilling of mining, hydropower, transportation and defense projects, as well as harbor and channel construction; DTH well drilling rigs are specialized in drilling the boreholes of large diameter and depth, for instance, water well drilling and geothermal well drilling.
