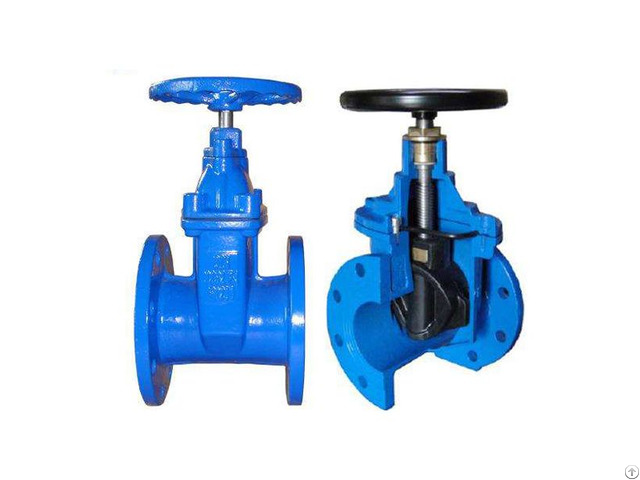

Din 3352 F4 Resilient Seated Flanged Gate Valves - China

Introduction

Product introduction

The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation.

Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc.

and saves installation space.

It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.

Resilient seat non rising gate valves 1 - Size: DN40-DN300

2 - Medium: water

3 - Standard: DIN

Available medium: water

Working temperature: ≤80℃

Flange dimensions: DIN2501

Face to face dimensions: DIN3202 F4.

Product Features

Low torque operation

Rubber encapsulated wedge

Clockwise closing direction

Fusion bonded epoxy coated inside and outside Adoptive Standards

Technical Data

1 - body: ductile iron

2 - bonnet: ductile iron

3 - gland: ductile iron

4 - wedge: ductile iron+EPDM

5 - lifting nut: brass

6 - adjustable stem: SS420

7 - clamp ring: brass

8 - O ring: silicone

9 - handwheel: ductile iron

10 - bolt: carbon steel

11 - ring: EPDM

12 - bolt: SS304
