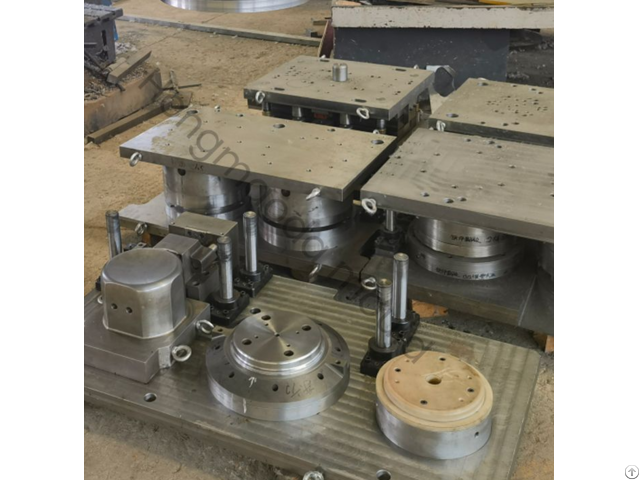

Deep Drawing Die - China

Deep drawing mold is a metal forming process in which sheet metal is stretched into the desired part shape.

A tool pushes downward on the sheet metal, forcing it into a die cavity in the shape of the desired part.

The tensile forces applied to the sheet cause it to plastically deform into a cup-shaped part.

Deep drawn parts are characterized by a depth equal to more than half of the diameter of the part.

Deep drawing mold can have a variety of cross sections with straight, tapered, or even curved walls, but cylindrical or rectangular parts are most common.

Deep drawing mold requires a blank, blank holder, punch, and die.

The blank is a piece of sheet metal, typically a disc or rectangle, which is pre-cut from stock material and will be formed into the part.

The blank is clamped down by the blank holder over the die, which has a cavity in the external shape of the part.

A tool called a punch moves downward into the blank and draws, or stretches, the material into the die cavity.

The movement of the punch is usually hydraulically powered to apply enough force to the blank.

Deep drawing mold stamping die/ mold/ mould/ tool

Material SKD11, DC53, Cr12MOV, CR12, SKD61 etc

Design Software AutoCAD, PRO/E, UG, catia, Dynaform, solidworks etc.

Cavity Single Cavity\ Multiple Cavity

Drawing Format igs, stp, prt, asm, pdf, dwg, dxf

Mould Life 1000000-3000000 shots

Packing Wooden Case

Application Hydraulic/ punch press machine Hongmaoda Mould an provide you with industry-leading stamping die forming services, continue to develop and invest the most advanced mold manufacturing technology.

We have unique insights in sheet metal deep drawing, blanking, bending, forming and other complicated mold manufacturing fields, can provide quality solutions.
