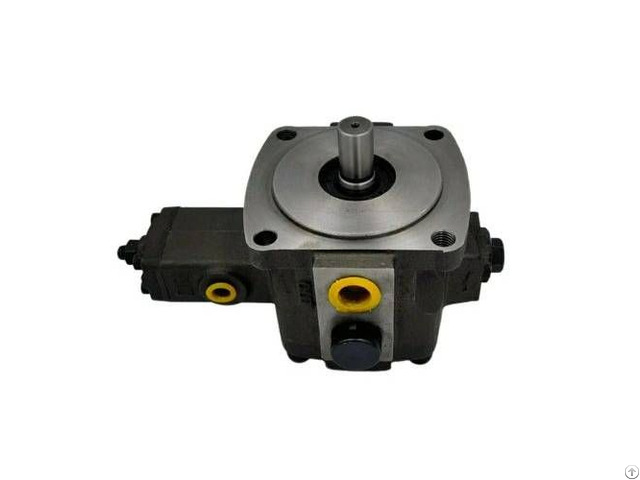

Vane Type Pump 30 40 - China

1 - The shaft clearance compensation design enables automatic adjustment of vane pump displacement according to the preset pressure.

2 - Equipped with a built-in pressure regulator, eliminating the need for an external regulator valve.

3 - Features high efficiency, energy saving, safety, and reliable performance.

4 - Widely applicable to grinding machines, automatic lathes, press machinery, leather equipment, shoemaking machinery, hydraulic stations, and other specialized or single-crystal machines.

Vane Type Pump Features

.

The shaft clearance compensation design automatically adjusts the pump's displacement based on the set pressure.

.

It has a built-in pressure regulator, so the system doesn't need an external pressure regulating valve.

.

It features high efficiency, energy saving, safety and reliability.

.

It works for grinding machines, automatic lathes, pressure machinery, leather machinery, shoe-making equipment, hydraulic stations, and other special or single crystal machines.

Instruction

Rotation direction: The standard direction is clockwise (viewed from the shaft end) – only this direction is allowed.

Always check the rotation direction to ensure the motor starts instantly.

Hydraulic oil: Use oil with a viscosity of 20 – 50 CST (ISO VG32) at 40°C, when pressure is below 7.0 MPa.

Oil discharge pressure: Insert the discharge pipe straight into the fuel tank.

Keep the back pressure from the filling pipe under 0.3 kg/cm².

Working oil temperature: The continuous operating range is 15 – 60°C.

Axis alignment: The eccentric error between the pump shaft and motor shaft must be ≤ 0.05 mm, and the angle error ≤ 1°.

Oil suction pressure: Maintain it at -0.3 kg/cm².

Pressure adjustment: Turn the pressure adjustment bolt counterclockwise to reduce output pressure, and clockwise to increase it.

Tighten the nut cap firmly after adjustment.
