Cnc Double Spindle Deep Hole Drilling Machine - China

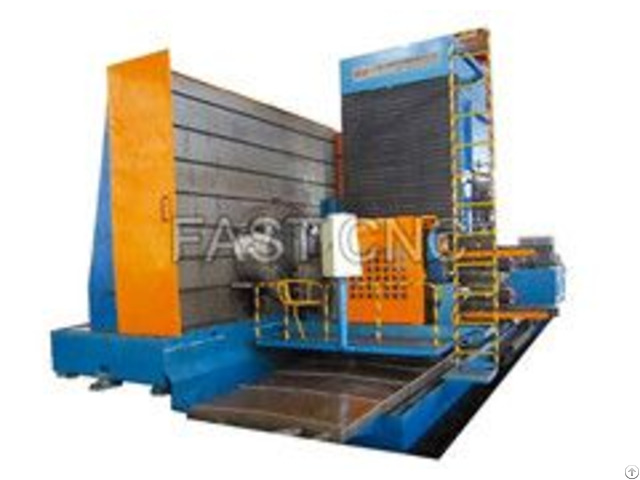

CNC Double-Spindle Deep Hole Drilling Machine Model SKZ40/2, High-Speed Joint Plates Drilling Machine, Double-Spindle Deep Hole Drilling Machine

APPLICABLE INDUSTRY:

This machine is mainly used to process deep holes on the tube plate of heat exchanger for petrochemical, boiler, and thermoelectricity industries.

ADVANTAGES:

● This machine is double-spindle drilling simultaneous, high efficiency.

● There are two kinds of drilling when needed as option, BTA drill or gun drill.

● This CNC drilling machine uses carbine external chips cleaning gun drilling or internal chips cleaning BTA drill, with advance technology, high processing accuracy, and stable quality.

● The cooling liquid can be used recycling.

Germany imported air-cooling system.

● This machine can clamp work piece Φ4000mm, drill hole deep 750mm.

This machine can drill Max.

Φ40mm.

The Max.

Depth of drilling is 800mm.

The rotation speed of spindle is 2500r/m.

Company Contact:

• Posted By: Jinan Fast CNC Machinery Co., Ltd

• Phone: 0086-15098878331

• Address: NO.8521 WEST JINGSHI ROAD HCANGQING DISTRICT, JINAN,shandong,China, shandong , JINAN , China

• Email:

• Website: http://www.jnfate.com

• Business Description: JINAN FAST CNC MACHINERY CO., LTD is devoted to design and manufacture complete processing machines working on the H-beam, U-beam, angles, plates and tubesheets, flanges and other steel profiles with punching, drilling, milling, boring function.

  JINAN FAST CNC MACHINERY CO., LTD is a professional manufacturer of profile and plate material auto-processing line and machinery.

  MAIN PRODUCTS: CNC full-automatic angle steel processing line, CNC joint plate punching& drilling machine, High-speed CNC drilling& milling machine for tube sheet/flange (PZG), CNC Beam Drilling machine (SWZ), CNC plate drilling& milling machine，CNC drilling& milling tapping machine, Gantry type drilling& milling& boring machine center, double-column rotation angle band-sawing machine, Angel notching machine, (Rolling type) Angle straightening machine, Hydraulic angle cutting machine, Hydraulic marking machine, Plate chamfering ( beveling) machine, Universal& special purpose hydraulic machines, etc.

  Focusing on customers value and requirements, JINAN FAST CNC MACHINERY CO., LTD is always ready to establish friendly business relationship with old and new customers for a brilliant future.

  Other Business--Precision Hole Processing

  Drilling sieve plate processing such as paper sieve plates, pulp filter sieve plates, mud extruder sieve plates, mining machinery sieve plates, and environmental protection equipment separating sieve plates, dehydration sieve plates, and vibration sieve plates.

  Drilling pressure container tube plates and stainless steel plates.
