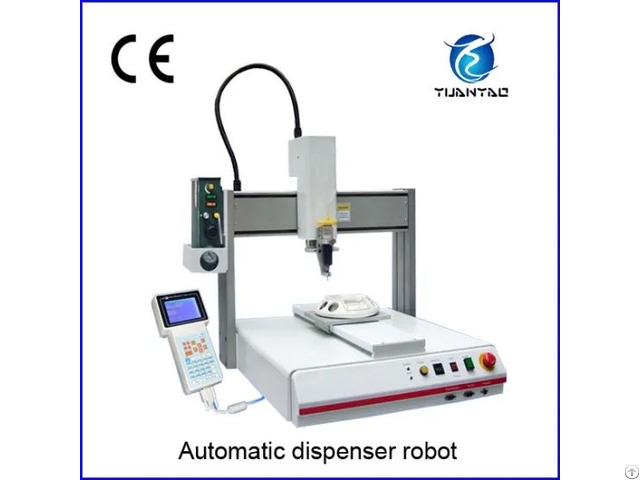

Automatic Dispensing Robot Machine - China

Main features of the equipment: 1 - Keyboard control in English version, easy operation.

2 - Functions: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.

3 - Equipped with software that has the area display, translation rotating operation functions.

4 - Be able to set size of gluing area, speed of gluing, dispensing time, stopping glue time.

Stable glue exudation without glue leaking and dripping.

5 - According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.

6 - General applications: Widely applied to fluid dispensing, e.

G: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative.

7 - Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.

In addition to the Supermatic tabletop glue dispensing robot, we are also manufacturing: Precision Oven Tester, Triple Type Temp.

& Humi.

Chamber, Temp.

&Humi.

Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp.

Humi.

&Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Other styles with different configurations are also avaialble upon request, welcome to enquire and purchase! Configurations of different styles:

Name Quantity Unit Remarks

Motor 3 set Micro stepping motor

High precision dispensing valve 1 pc Optional

Movement vontroller 1 set Automatic dispenser software 1 set Automatic independent R&D

Dispensing controller 1 set SMC/MAC

Specification

Model PY-220D PY-330D PY-440D PY-550D

Working Area 200*200*50mm 300*300*100mm 400*400*100mm 500*500*150mm

Max.

Speed 500mm/sec

Resolution 0.02mm

Repeatability ±0.02mm

Operator system LCD panel/keyboard

Drive Mode Micro stepping motor/belt

Power AC 220V 50-60 Hz 0.8KW

Size 380*370*500mm 480*500*600mm 580*600*600mm 640*700*720mm

Weight 20KG 30KG 40KG 50KG

Work Environment Temperature: 0-40ºC, Humidity: 20-90%RH
