Series Zyd Double Stage Vacuum Transformer Oil Filtration Machine - China

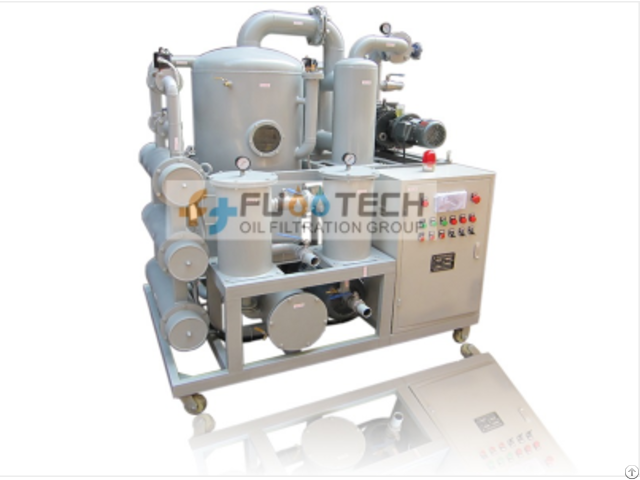

Series ZYD Double-stage Vacuum Transformer Oil Filtration Machine 1

transformer oil purifier

oil purifier As is well known the Transformer plays an important role in the generation, transmission and distribution of electrical energy.

Under load the transformer, dissipates heat and the insulating oil acts as a coolant as well as an effective dielectric.

Due to the highly hygroscopic nature of the transformer oil, it absorbs moisture from windings, which leads to gradual deterioration of dielectric strength.

Also there are some waste impurities, gas contents in the transformer oil which destroy the oil’s quality.

Series ZYD transformer oil purifier is a double stages vacuum oil purification system, comparing single stage vacuum oil puriifer, besides a rotary vane vacuum pump, ZYD machine installs one more booster roots pump vacuum system which speed up evacuation much faster.

Series ZYD oil filtration machine not only provides regular oil purification/ reclamation such as degassing, drying and particulate removal, but also can remove acidity, sludge, carbon deposits, sulfur, and other soluble oil decay products and improve physical & chemical properties comparable to new transformer oil.

The doube stage vacuum transformer oil purifier adopts advanced vacuum chamber which has large area three-dimensional flash evaporation technique and remove water, gas, solids much quickly and completely.

After purification by our Series ZYD transformer oil purifier, the oil breakdown voltage can reach up to 75KV.

Series ZYD oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil.

It can be used for filtration of more than 110V substation live line work onsite.

Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Company Contact:

• Posted By: FuooTech Oil Filtration Group

• Phone: 86-023-88239845

• Address: No. 5 Hongshi Street, Jiulongpo District, Chongqing , Chongqing , China

• Email:

• Website: http://www.fuootech.com/

• Business Description: FuooTech Oil Filtration Group is a hi-tech stock company engaged in developing, producing, selling a series of oil purifier and oil purifiction machines that regenerate and purify all kinds of waste/used oils, such as engine oil, lube oil, transformer oil, turbine oil.

  Our oil purifiers have been exported to many countries.

  Our products as follows:

  Insulating/ Transformer Oil Purifier

  Double-Stage Highly Effective Vacuum Insulating Oil Purifier Series ZYD

  Double-Stage Vacuum Automation Insulation Oil Purifier Series ZYD-A

  Double-Stage Vacuum Insulating Oil Regeneration Purifier Series ZYD-I

  Highly Effective Vacuum Transformer Oil Purifier Series ZY, ZYA

  Multiply-Function Insulating Oil Regeneration Purifier Series ZYB

  Mobile Type Transformer Oil Purifier Series ZYD-M

  Insulation Oil Regeneration Device Series BZ

  BDV Insulating Oil Tester (Test Oil Dielectric Strength) Series IIJ-II

  Turbine Oil Purifier

  Zhongneng Turbine Oil Purifier Series TY

  Zhongneng Automation Turbine Oil Purifier Series TY-A

  Zhongneng Turbine Oil Regeneration Purifier Series TY-R

  Lubricating Oil Purifier

  Phosphate Ester Fire-Resistant Oil Purifier Series TYA-1

  Zhongneng Vacuum Lubricating Oil Purifier Series LY

  Vacuum Automation Lubricating Oil Purifier Series LY-A

  Zhongneng Vacuum Lubricating Oil Regeneration Purifier Series TYC

  Engine Oil Regeneration System

  Engine Oil Purifier/ Oil Regeneration System Series LYE

  Diesel oil, gasoline oil and fuel oil purifier

  Coalescence-Sepa ration Oil Purifier specially for Diesel Oil, Gasoline Oil, Fuel Oil, Light Lubricating Oil Series TYB

  Portable Oil Purifier/ Oiling Machine Series JL

  Plate Pressure Oil Purifier Series PL

  Centrifugal Vacuum Oil Purifier Series CYA

  If you are interested in our machines, please don' t hesitate to contact us.
