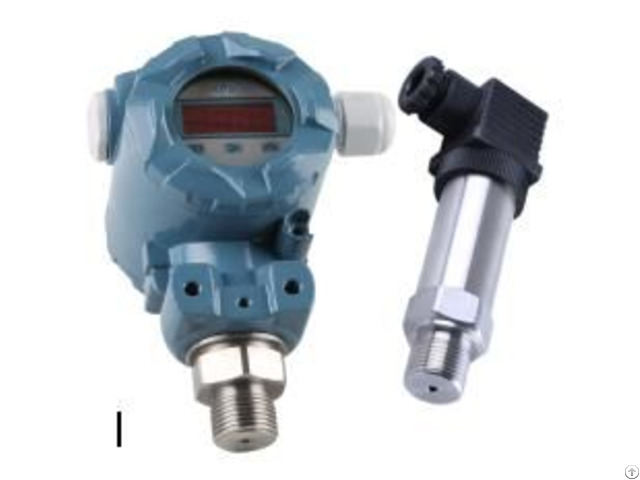

Intelligent Pressure Transmitter - China

Model: CJBPZ-I

Description:

CJBPZ Intelligent Pressure Transmitter is a highly integrated measurement product with high stability.

It uses intelligent processing circuit, the most advanced design and manufacturer technology of piezoresistive pressure transmitter, and is available for pressure signal and temperature signal output that in accordance with standard MODBUS-RTU protocol.

Featuring integrated design, standard digital output, great compatibility, small size, high accuracy, light weight and wide pressure range, it can be applied in many fields which involve high accuracy required measurement of fluids.

Features:

RS485 communication interface, Standard MODBUS-RTU Protocol output

Netting available

Short protection and reverse polarity protection

Full stainless steel construction, compact size, light weight

Good output consistency and replaceability

Available for calibration and parameter change on site through matched soft of upper computer

Application: Measure temperature of gas or liquid which is compatible to 316L stainless steel

Used in field of petroleum, chemical industry, Metallurgy, Electricity, hydrology etc

Performance Parameters: Range: -100kPa…0kPa~10kPa…10 0Mpa (Pressure); 0m~3.5m…200mH2O (Level) Pressure type: Gauge / Absolute

Over pressure: 1.5 times FS / 110MPa (min.

value is valid) Accuracy: ±0.5%FS

Stability: ±0.3%FS/YEAR

Zero thermal drift: ±0.04%FS/℃(≤100kPa); ±0.03%FS/℃(＞100kPa) Span thermal drift: ±0.04%FS/℃(≤100kPa); ±0.03%FS/℃(＞100kPa) Output: RS485 Interface(MODBUS-RTU protocol)

Application Temp: -10℃~60℃ Measurement Error: ±2℃ Storage Temp: - 40℃~85℃ Power Supply: 9V～28V DC, 15V DC (recommended) Insulation: 100V, 100M

Shock: 20g, 25Hz~2000Hz Impact: 100g, 11ms

Protection: IP65(B1, B2); IP63(B3); IP68(Level) Electric Connection: Cable or Junction Box Weight: about 160g

Housing: S.S. 316L

Diaphragm: S.S. 316L O- Ring: Viton

Remark: Shrinking range : 1/5 basic range, no range extension.

For special temperature requirement, please feel free to contact our company.

Company Contact:

• Posted By: Xian Chuangjin Electronic Technology Co., LTD

• Phone: 8602989161392

• Address: The 30th Floors,Kaixuan Massion,Xuanwu Road West,Weiyang District, Xian , Shaanxi , China

• Email:

• Website: http://www.xian-sensor.com

• Business Description: Xian Chuangjin Electronic technology Co., LTD founded in year of 2013 is professional in researching and providing a series of Pressure/Level/Temperatur e Transmitter, Sensor, Switch Controller, Flow Meter, Density Meter, Vibration Wire Piesometer, MINI Osmometer, Earth Pressure Cell, Dynamic Strain Amplifier.

  We offer ODM and OEM service and own ISO9001: 2000 Certificate.

  Pressure Transmitters and Temperature Transmitters are granted CE certificate.

  These products are also widely used in aeronautical and space, waterway, navigation, petrochemical industry, irrigation works, electric power, coal metallurgy, water supply, natural gas supply, steam and warm supply, medicine and bioengineering etc and scientific research institutions.



  When there's no standard product to fit your application or cost requirements, simply talk to us about your requirements, both technical and budgetary, and well develop your customer solution, including power supplies, measurement range, output, port type etc, then fully test the system prior to supplying it to you on time, complete and ready to install.

  Welcome customer from domestic and abroad to inquiry.
