1800l H Distribution Transformer Oil Filtration Plant - China

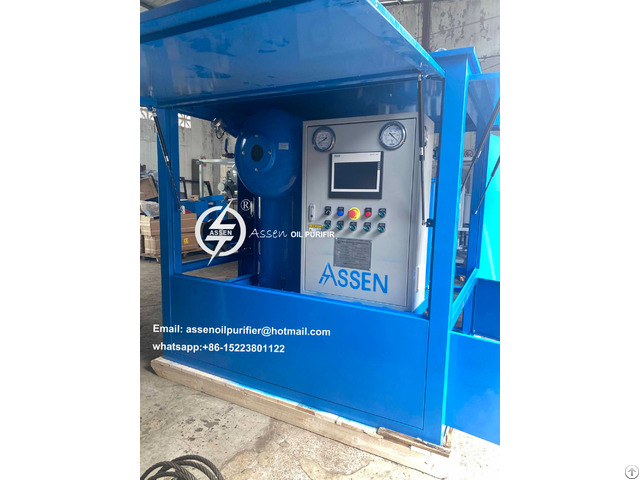

Usage: The DVTP Distribution Transformer oil filtration machine was designed according to decompression separation, precise filtration, Spiral spray atomization separation technology, molecular adsorption, vacuum drying principle.

The treated oil can meet the standard of the national standard.

Features:

Expectations on an effective oil plant for treatment of insulating oil.

Suitable for oil treatment, vacuum oil injection and cyclic hot oil drying in the installation and maintenance of large capacity transformers.

Easy and failsafe operation.

On-line measuring and recording of process parameters.

Used in the electric power system (110kV~500KV).

Features include low noise, high-strength working vacuum, and high efficiency filtering process

Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤5Pa

The unit can be used for the transformer vacuum oiling and for various wet electrical equipment vacuum drying.

Flexibility in application(flow frequency conversion, suitable for transformers of different sizes)

It is humanization design with low noise, deep purification and long time free maintenance to save cost from the running process.

After treatment

Moisture PPM ≤3

Gas content % ≤0.01

Impurity size μ ≤1 (no free carbon)

Breakdown voltage kV ≥75

IFT dynes/cm ≥40

Acid value mgKOH/g ≤0.03

Dielectric loss factors tgδ(90°C) ≤0.001 ASSEN warrants the plant supplied under this specification against defects in material and workmanship under normal use and service for a period of twenty-six (26) months from the date of shipment or twenty-four (24) months after the start-up of the system.

ASSEN's obligation under this warranty is limited to repairing or furnishing, a similar part to replace any part, which was proven to be defective within the warranty period.

1 - We customize the machine to your requirements.

2 - We have more than 20 years of export experience.

3 - We offer our customers high-quality products at a competitive price.

4 - We offer our customers excellent after-sales service.

5 - We are not satisfied until our customers are satisfied.
