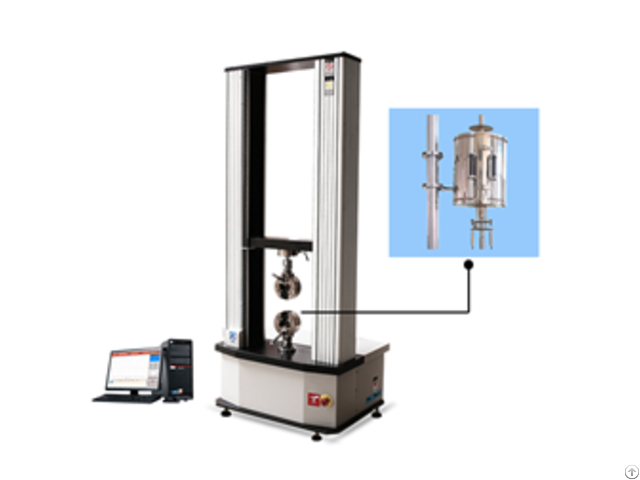

Universal Testing Machine - China
price: 20000.00 Dollar US$
The machine is able to process the testing of stretch, compress, bend, tear, shear and other nonmetallic and metallic.
Such as, rubber, plastics, textiles, fibers, nanomaterials, polymers, composites, synthetic materials, automobile parts, alloy materials and so on.
Standards as follow:
GB/T4338 Method for high temperature tensile of metallic material
HB5195 Method for high temperature tensile of metallic
GB/T2039 Method for tensile creep and endurance of metallic
HB5150 Method for high temperature tensile endurance of metallic
Technical spec：
1 - Force resolution：1/50000
2 - Force accuracy：≤1.0％
3 - Displacement resolution：1/1000
4 - Displacement accuracy：≤0.5％
5 - Extensometer resolution：1/1000
6 - Extensometer accuracy：≤0.5％
7 - Range of speed：0.1－500mm/min
8 - Power supply: 220V50Hz
9 - Power：4600W
10 - Size: 860×580×1760mm(LxWxH)
11 - Weight: 400kg
Company Contact:
- Posted By: Sichuan Dexkcyq Instrument Co.,Ltd
- Phone: +86 18183288416
- Address: No.192 Huaguan Road, Longtan Industrial Estate, CHENGDU , Sichuan , China
- Email:
- Website: http://www.dextest.com
Published date: August 4, 2019
- Business Description: DEX is a research base of high-end dynamic and static mechanical testing covers R&D, production, sales and technical services.
We provide the most abundant product line in the industry, such as rock mechanical testing system, dynamic mechanical testing system, structural mechanical testing system, static mechanical testing system, etc.
DEX gives full play to the team advantage, innovation advantage, design advantage and resource superiority for committed to become the integrated service provider with global influence, which involves the most advanced technology and product, efficient solution and all-around services.
