Ryfq 1600 Jumbo Roll Slitter And Rewinder - China

price: 33800.00 Dollar US$

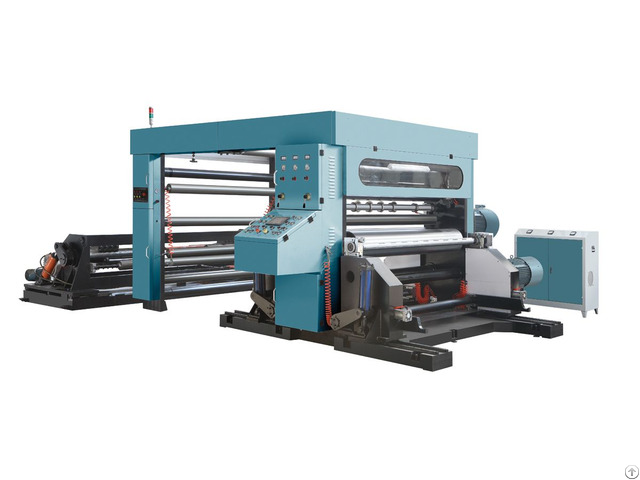

Ryfq 1600 Jumbo Roll Slitter And Rewinder

Products Photos Catalog Ryfq 1600 Jumbo Roll Photos Catalog

Model Paper slitting machine RYFQ-1600

Technical parameter Control system

Max width mother roll 1600mm PLC Controller Delta(Taiwan)

Min-width finish roll 35mm Main-machine interface WEINVIEW6070i

Max-diameter mother roll 1500mm Tension sensor Hz100kg

Max-diameter finish roll 1300mm Actuator CHNT

Speed of Slitting 0-300m/min Signal component Omron Slitting capability 60-700gsm Pneumatic component Airtac

winding way Air expansion winding Program edition RYS-RS2.0

Slitting knife Could up to 18sets Inverter YASKAWA 15KW

Paper giving way By hydraulic clamping Length sensor Have speed regulation control Inverter outfit assemble

Power input According to customer require Loading material Hydraulic clamping type

Size (mm) L*W*H Unloading material Pneumatic

Unwinding machine 3600 *1600 *1200mm Edge correcting motor Y11 60: 1

Rewinding machine (B)3000*1600*1200mm

(C)2450*1200*800mm Count meter Automatic

Up-knife specification 2*110*75mm Tension adjust magnetic powder brake

Down-knife specification 4*110*75mm rewind double airshaft

Total weight 5050kg Slitting by clipper, Drive system Magnetic powder tension control system

Mainframe power 15KW Enclosed component

Mainframe wheeling speed 1400r/min Air compressor no

Liquid compression motor 1.5kw Useful tool have

Way of correcting edge Hydraulic Driving way Chain driving Bearing Wanxiang


Company Contact:


  • Phone: 008618106582668

  • Address: 17floor, Building 3, Greenland Central Plaza, No.98 Daguan Road, Gongshu District, , Hangzhou, , zhejiang , China

  • Email: Email


Published date: February 27, 2026

  • Business Description: We continuously provide :

    Turn-key Projects for corrugated carton factories, along with raw materials and spare parts.

    Our offerings include 3-layer and 5-layer corrugated paperboard production lines, single facer lines, flexo printing and slotting machines, folder gluer machines, creasing and die-cutting machines, stitching machines, laminating machines, offset printing machines, slitting and rewinding machines, paperboard sheeters, and more.
