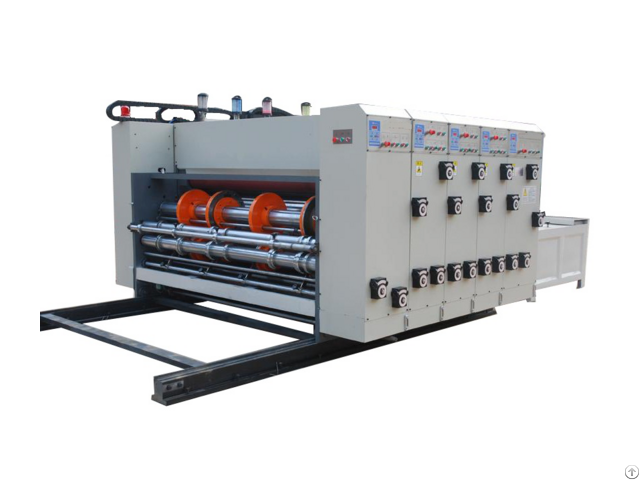

Mjbl 4 Model Flexo Printing And Slotting Die Cutting Machine - China

II.

Introduction

This machine is composed of chain feeding system, printing, slotting, electrical system and so on.

It can finish the functions of printing, pressing line, slotting, cutting in one time.

The Wall board use HT250 with hand dealing on it, make sure it will not be curve.

It is processed with boring machine, make sure the processing precision and quality of the board.

The board structure is solid cast iron, with thickness 35mm, have good shockproof capacity, gears use steel straight gear with 45# steel dealt with high-frequency quenching, Precision grade is more than 6, hardness is HRC52~58 - The lubrication use handle pouring.

The working noise is low, the strength and driving stable is good.

The gap adjust of printing and feeding use wall turbine-worm and adjust the double-stand structure, any paperboard size you want to adjust, it can make sure there is no gap driving, and make the precision high.

All the bearings are made from Haerbin, Wafangdian and such famous brand product.

Oil box use thick steel board dealt with finish machining, make sure there is no leak of the lubrication oil.

Use “outside adjust the turbine-worm” for adjusting low-roller gap adjust, make sure there is no center excursion of up roller and down roller.

Electrically separate and close of the machine, with the alarm-bell attached.

During the separate and close work of the machine, the alarm-bell is ringing to make sure the safety of the workers.

After each part closed, there are pneumatic cylinder for lock.

The main power cannot open if the pneumatic cylinder does not lock.

And after the main power open, the pneumatic cylinder cannot open.

The electrical operating case of printing part and slotting part are independently, very easy to operate.
