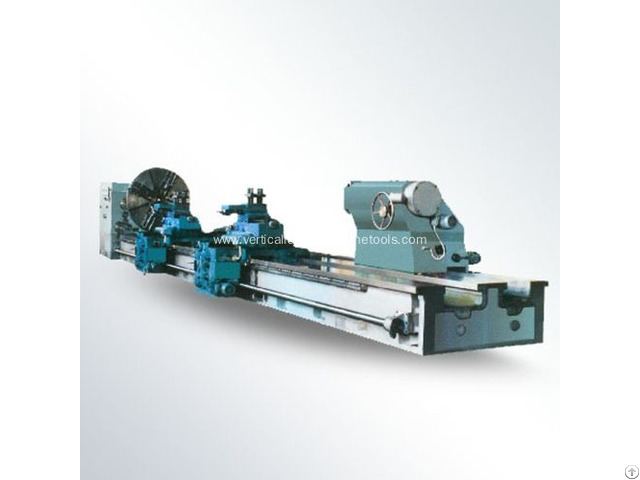

  • Heavy Duty Cnc Horizontal Lathe Machine Ck61250 - China

    price: 901000.00 Dollar US$

    Technical specification of Heavy duty CNC horizontal lathe machine CK61250

    1 Maximum swivel diameter on the bed 2500mm

    2 Maximum turning diameter over carriage 2000mm

    3 Maximum length of workpiece 100/120/140 dm

    4 Maximum weight between center 80/100/120 t

    5 Diameter of faceplate 2500mm

    6 Maximum torque of faceplate 125/160 KN.

    m

    7 Range of spindle speeds r/min 0.63-125 r/min

    8 Maximum cutting force of carriage 125 KN

    9 Range of feed rates ( long) 2-4500 mm/min

    10 Range of feed rates( transverse ) 2-4500 mm/min

    11 Rapid speed of of carriage( long) 4500 mm/min

    12 Rapid speed of of carriage( transverse ) 4500 mm/min

    13 Horizontal travel of tool post 1000 mm

    14 Travel of tailstock quill 300mm

    15 Power of main motor 125 KW

    16 Machine weight(Approx) 167 t

    17 Overall dimensions(L×W×H) 1850×550×325 cm


    Company Contact:


    • Phone: +86-317-5202090

    • Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County, Hengshui City,Hebei Province,China, Hengshui City, Hebei Province, China

    • Email: Email


    Published date: July 21, 2016

    • Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the manufactures and sells of metalworking machines: CNC lathe machine, vertical lathe machine , Heavy duty horizontal lathe machine, Gantry milling machine, Gantry Planer Milling Machine, Roll turning lathe, Floor type boring lathe etc.

      If interested, please feel free to contact us.
