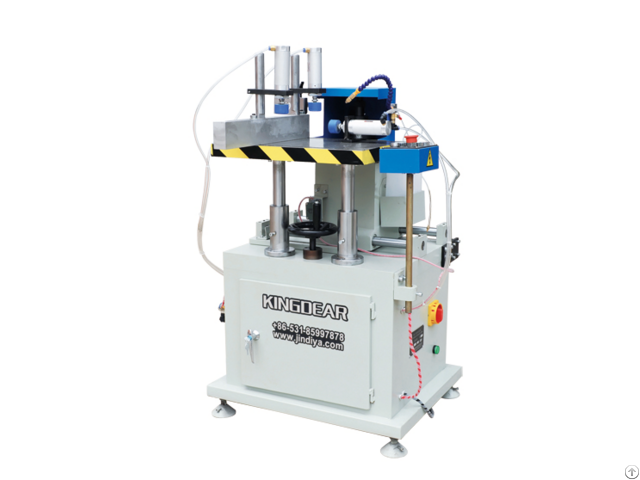

End Milling Machine Model No Lxda 200 - China
price: 109.00 Dollar US$
PRODUCT DESCRIPTION
End Milling Machine Equipment Feature
■ Used for processing aluminum profile end step face and end slot etc.
■ Super precision main shaft insured accurate and steady processing.
■ Adjustable processing angle within30°~90°
■ Convenient tool setting due to adjustable worktable.
■ Tool main shaft is connected by shaft coupling, thus the motor main shaft rotating accuracy cannot affect the tool's working accuracy.
■ Tool feeding adopted linear bearing motion pair, which insured steady process.
End Milling Machine Technical Parameter
1) Power supply: 380V, 50Hz
2) Motor power: 1.5kW
3) r.p.m: 2, 850r/min.
4) Cutter axis diameter: Φ32mm
5) Max.
milling cutter diameter: Φ200mm
6) Max.
milling range: 200 x 70 x 45mm
Processing Accuracy
■ Processing roughness: Ra12.5um
Company Contact:
- Posted By: Jinan kingdear machinery Co.,LTD
- Phone: 13906416245
- Address: 218 Jiqi Road, Jinan City, China
- Email:
- Website: http://www.jindiya.com
Published date: August 6, 2021
- Business Description: Jinan Kingdear Machine Co., Ltd. is a modern high-tech enterprise specializing in the research and development, production, sales and technical service of high-grade aluminum doors and Windows, aluminum curtain wall equipment and industrial aluminum processing equipment, automatic production line.
The company series of products include aluminum doors and Windows equipment, aluminum curtain wall machinery, industrial aluminum processing equipment.
