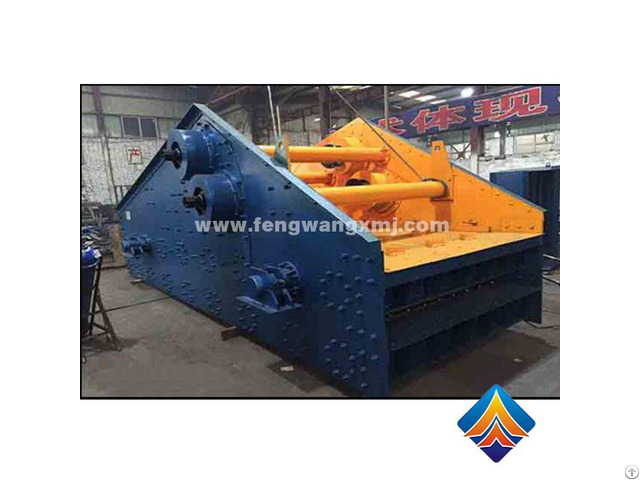

Zkr Series Clean Coal Dehydration Straight Line Screen - China

ZKR Series Clean Coal Dehydration Straight Line Screen vibrating screen manufacturer coal vibrating screen Processed Materials: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase, Iron Ore, Copper Ore, Zinc Ore, etc.

Fengwang Vibrating Screen Machine Applications: Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway, Metallurgy, Construction, Highway, Water Conservancy ZKR series clean coal dehydration straight line screen is applied to coal preparation, mineral processing, power generation, sugar, salt and other industrial sectors, the medium and fine size of the material for dry or wet classification or dehydration, desorption and desilting.

Structural characteristics of

ZKR plant dehydration linear sieve series adopts two vibrator horizontal layout, reduce the screen height, reducing the height of vibration, the external synchronous gear box, double motor drive, are connected by a flexible coupling between the drive shaft, the structure is novel, gear box and motor vibration, sieve plate used to sew sieve plate or punching sieve plate welding, longitudinal compression, screen via special reinforcement, the whole machine stiffness was improved.

The screen machine is based on the strength test and modal analysis data as the design basis, integrated Germany, the United States, Japan and other countries of the screen machine has the advantages of advanced structure, strong and durable, stable and efficient movement, large production capacity and convenient maintenance.

The technical features

Parameter area m feed size mm processing capacity t/h power kw outline size mm (length * width * height) working dynamic load N per fulcrum

ZKR1548 7.3 ＜100 45-65 2*7.5 5055*3100*1370 ±2000

2ZKR1548 7.3 ＜200 45-90 2*11 5055*3100*1900 ±2300

ZKR1848 8.5 ＜100 65-110 2*11 5055*3460*1370 ±2100

2ZKR1848 8.5 ＜150 65-110 2*15 5055*3460*1900 ±2400

ZKR2148 10 ＜100 70-95 2*7.5 5055*3700*1370 ±2400

2ZKR2148 10 ＜200 80-100 2*7.5 5055*3700*1900 ±2600

ZKR2448 12 ＜200 90-135 2*11 5055*4060*1370 ±2300

2ZKR2448 12 ＜200 90-135 2*15 5055*4060*1600 ±3200

ZKR2460 14 ＜100 100-180 2*15 6275*4060*1500 ±2200

2ZKR2460 14 ＜200 100-180 2*18.5 6275*4060*2100 ±3200 ZK vibrating screen Advantages and Features

1 - Various material separation range- power or particle, wet or dry, heavy or light, coarse or fine, hot or cold.

2 - Various size range-available diameter from 400mm to 2000mm, mesh size can reach 500 mesh ( 0.028 mm).

3 - Environmentally Friendly- Fully enclosed structure, no dust pollution, improve working conditions for operators as well.

4 - Quick Screen Changes-Quick release device is provided to replace the screen with 5 minutes.

5 - Automatic screen cleaning-bouncing balls keep screen openings clean and maintain a good efficiency.

6 - Customized order- mobile vibrating screen can be customized according to customer’s demand.

7 - Unique design-Mature technology, compact and simple structure, convenient installation and maintenance.

8 - Wide application-Rotary vibrating screen is applicable to any powder, granule, particle and mucus.
