Vibrate Knife Cutting Machine - Chinaprice: contact company for price

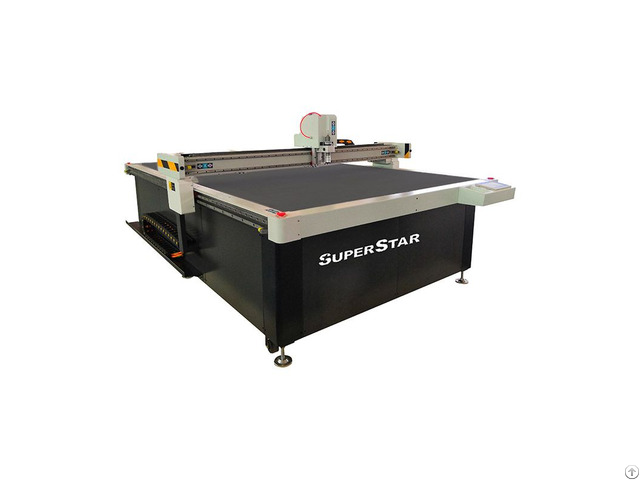

Vibrate Knife Cutting Machine china vibrate knife cutting machine The vibrating knife is currently a relatively widely used processing equipment in the cutting process of flexible materials.
It uses the upper and lower high frequency vibration of the blade to cut, gradually improving or replacing the traditional flexible cutting process equipment.
Simple operation, high efficiency, Environmentally friendly and odorless
1 - The cutting process has no peculiar smell.
The vibrating knife cutting machine uses a very sharp blade to cut, and does not produce a pungent smell.
2 - The cutting edge is flat and smooth, and the cutting surface is very neat to facilitate the later processing of the product.
3 - The cutting speed is very fast.
Due to the blade cutting, the vibrating knife cutting machine can cut flexible materials very fast.
4 - The operation is simple, and the automatic cutting method eliminates the need for manual assistance to cut, which virtually saves some unnecessary human resources.
5 - Taiwan square rail guide, smooth operation, high precision, long life.
6 - The precision of the grinding rack can reach level 5, the pitch error of the phase lead is 0.003mm, and the cumulative error is 0.035mm (1000mm length).
Rack specifications: modulus 1-12, with straight and helical teeth, helical helix angle 19 degrees 31 minutes 42 seconds, pressure angle 20 degrees, 500mm/1000mm rack side has mounting holes and positioning pin holes.
7 - RUIDA control system is a knife cutting controller independently developed by Ruida Technology with the function of tool direction following control.
It integrates the processing of tools such as vibrating cutters, round cutters, milling cutters, and pressing wheels.
It also integrates feeding and circular punching., V-shaped special punching, brush processing, red light positioning and a series of functions.
8 - Vibrating knife cutting machine vacuum adsorption work surface: partition adsorption selection: according to the size of the material, the size of the pattern selects the partition dense Specification of SuperStar Vibrate Knife Cutting Machine
Parameter model CX-1625
Effective working area 1600*2500mm
Cutting speed Up to 800-1300mm/s
Machine size 2200*3500*1500mm (width, length and height)
Work characteristics The computer operation and the cutting machine are carried out at the same time, and the data transmission is completed quickly
Cutting application Leather, PVC, fabric, silk circle, EVA, XPE, blended materials, quilted embroidery, velvet materials, etc.
Material fixing method Vacuum adsorption
Operation panel Touch control system
Cutting accuracy ±0.01
Transmission parts Taiwan linear guide, Taiwan transmission rack
Motor Taiwan Delta Servo Motor
Working voltage/frequency 380V+10%, 280V+10%, 50HZ+10%
Security configuration Intelligent anti-collision switch, emergency stop button Applicable Industry
Paper-plastic packaging, leather, PU, PVC, Oxford cloth, corrugated paper, KT board, seats, rubber, gaskets, furniture, textile, metal, electronics and other flexible materials.
If you want to know the latest news about the Fiber Laser Engraving Machine, 30w Fiber Laser Engraver manufacturers, please come to our website and get a quote for free.
- Phone: 86053188660202
- Address: Block B, building 6, Rongsheng times international, Beiyuan street, Licheng District, Jinan , Shandong , China
Published date: November 24, 2021
- Business Description: Jinan Jinshengxing Machinery Manufacture Co., Ltd. is a professional company in researching, developing and manufacturing CNC routers.
Our company devotes to carving CAD / CAM technology and CNC numerical control technology research and development.
We have made great progress in the precise CNC router design theory and craft technology.
Our company has realized the process from automation control technology to industrial production.
By adopting assembly technology and choosing fine materials, our company has moved towards good stability and gets the position in advertisement, woodworking and metal mold industries.
We have won reputation for the high quality products and the best services.
We always emphasize on research and development.
Adhering to the spirit of innovation, we will never stop to develop our own brand and new products.
With the expanded market, we sincerely hope to cooperate with customers from all over the world.
Please contact us for more details.
