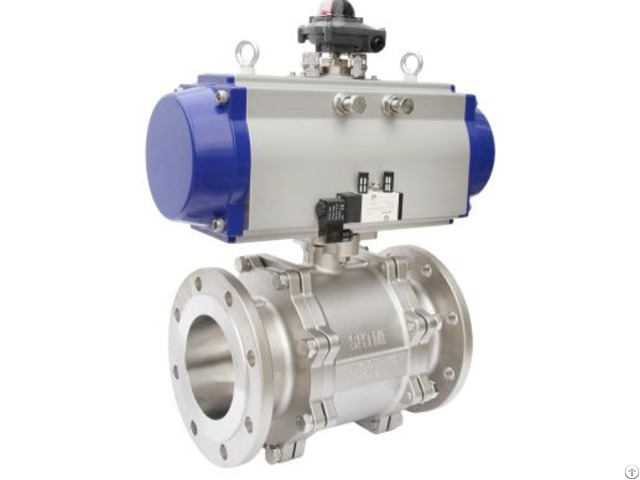

Three Piece Flange Ball Valve - China

A 3-piece flanged ball valve is an industrial ball valve with a body assembled from three separate bolted sections: two end bodies (with flanged pipe connections) and one center body (which houses the ball, seats, and stem).

The three sections are clamped together by external tie bolts running between the two end bodies.

This modular three-piece construction delivers a defining maintenance advantage over 1-piece and 2-piece body designs: the center body can be completely removed from between the two end bodies — with the end bodies remaining bolted permanently in the pipeline — giving full access to the ball, seats, and stem seals without disturbing the pipeline alignment or requiring pipe section removal.

The flanged end connections on both end bodies conform to international flange drilling standards (ANSI B16.5, DIN EN 1092-1, JIS B2220), providing a mechanically secure, pressure-rated, and gasket-sealed connection to the pipeline at both inlet and outlet.

Company Contact:

• Posted By: TOMFI VALVE (SHANGHAI) CO., LTD

• Phone: +86 21 39781817

• Address: A12, 5399 Xinke Road, Xianghuaqiao Street, Qingpu District, Shanghai , China

• Email:

• Website: https://www.shtmfvalve.com/

• Business Description: TOMFI VALVE (SHANGHAI) CO., LTD. is a high-tech enterprise engaged in the development and production of actuators, the installation and commissioning of automatic instruments and complete sets of automatic control valves, and technical services.

  It is a professional enterprise selling and acting for all kinds of valves in various countries, and it is also a powerful enterprise in marketing and after-sales service.

  The company has bases in Shanghai and Anhui respectively and always adhered to the policy of "relying on science and technology, development and innovation, excellence and strict management", which reflects the efficient service of"customer satisfaction".

  Our Products:

  - American Standard High Platform Flange Ball Valve

  - Thermal Insulation Gate Valve

  - Plunger Globe Valve

  - Fluorine Lined Pipe Fittings Compensators

  - Filter Pressure Relief Valve
