Three Phase Transformer - China

S13 series of Three-phase oil Immersed Transformers, three phase transformer, three phase variable transformer, 3 phase transformer, three phase power transformer, 3 phase step down transformer

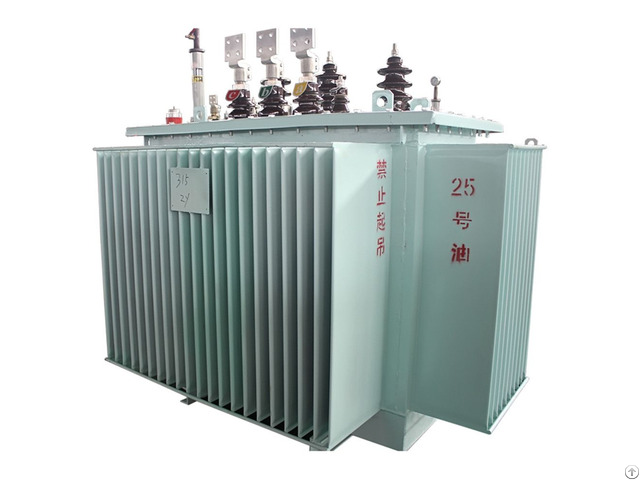

Oil Immersed Transformer

Model and Meaning

Model No.

Rated CapacityKVA Rated Voltage KV Connection Group Symbol Loss W No-load Current (%) Impedance Voltage% High Voltage KV Tapping Range of High Voltage Low VoltageKV No-load On Load S13-M*R-30/10 30 10 5%2x2.5% 0.4 Dyn11Yyn0 80 630/600 0.30 4.0

S13-M*R-50/10 50 100 910/870 0.24 S13-M*R-80/10 80 130 1310/1250 0.22 S13-M*R-100/10 100 150 1580/1500 0.21 S13-M*R-160/10 160 200 2310/2200 0.19 S13-M*R-200/10 200 240 2730/2600 0.18 S13-M*R-250/10 250 290 3200/3050 0.17 S13-M*R-315/10 315 340 3830/3650 0.16 S13-M*R-400/10 400 410 4520/4300 0.16 S13-M*R-500/10 500 480 5410/5100 0.16 S13-M*R-630/10 630 570 6200 0.15 4.5

S13-M*R-800/10 800 700 7500 0.15 S13-M*R-1000/10 1000 830 10300 0.14 S13-M*R-1250/10 1250 970 12000 0.13 S13-M*R-1600/10 1600 1170 14500 0.13

Company Contact:

• Posted By: Baoding Zhongyi Electrical Material Manufacturing Co.,Ltd.

• Phone: +863125926018

• Address: Room A1109, Oriental Pearl Business Center, Yulan Street, Lianchi District, Baoding, Hebei, China, Baoding , Hebei , China

• Email:

• Website: https://www.firsttransformer.com

• Business Description: Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation.

  Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters.

  The registered capital of the company is RMB 81, 000, 000.

  The company mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers.

  The hoisting, tooling and testing equipments are complete.

  Our company has passed the ISO9001-2015 international standard quality management system certification.

  All performance indicators of the products have reached the relevant national standards and international standards.

  Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.

  Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", well always treat our customers warmly and provide qualified products and service to your satisfaction.

  The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product .
