Horizontal Mud Agitator Drilling Mud Agitator PRODUCT DESCRIPTION

DC mud agitator is used for the mixing and agitation of drilling fluid, preventing the settlement of solid phase particles in the tank recycling system.

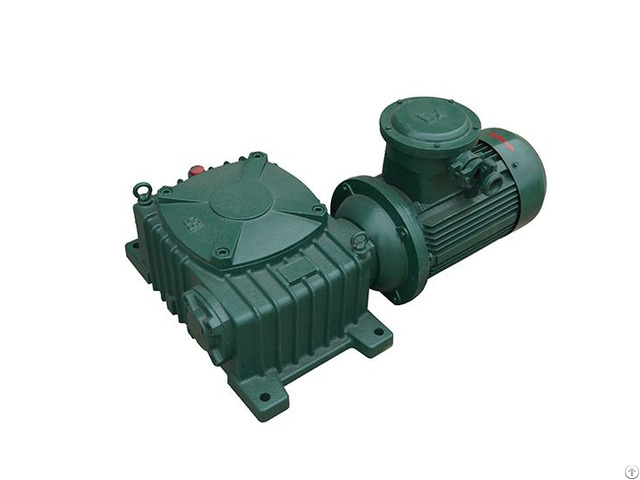

(1) Speed reducer combined with explosion-proof motor, which is easy maintenance and suitable for using in wild harsh working conditions.

(2) Customers can choose single layer or double layers impellers according to site conditions.

Agitator shaft centering guide can be added according to the increase of tank depth.

(3) The motor is placed horizontally, convenient for installing, adjusting and replacing.

(4) Adopt worm wheel and worm gear reducer drive, which have the advantages of large transmitted torque, smooth operation, reliable performance, etc.

(5) Optional ATEX, IEC and marine explosion-proof certified motors according to customers'requirements.

Mud Agitator Parameters

Model DCJBQ5.5 DCJBQ7.5 DCJBQ11 DCJBQ15

Motor Power 5.5kW 7.5kW 11kW 15kW

Impeller Speed 60rpm(50HZ)/72rpm(60HZ)

Shaft Length 1500mm or According to tank internal height

Single Impeller Dia.

850mm 950mm 1050mm 1100mm

Double Impeller Dia.

r Electric Specs 380V/50HZ or 460V/60 or Customized

EX Standard Ex dⅡBT4

Motor and reducer Dimension 910×600×560mm 1080×650×630mm 1250×720×690mm Weight 252kg 255 kg 340 kg 430 kg

Single Impeller Dimension 850×850×1500mm 950×950×1500mm 1050×1050×1500mm 1100×1100×1500mm Weight 45 kg 50 kg 55 kg 60 kg

Double Impeller Dimension N/A 800×800×1500 850×850×1500 900×900×1500 Weight 65 kg 75 kg 85 kg

Remark 1, Righting set provided if impeller shaft length is above 1800mm.
