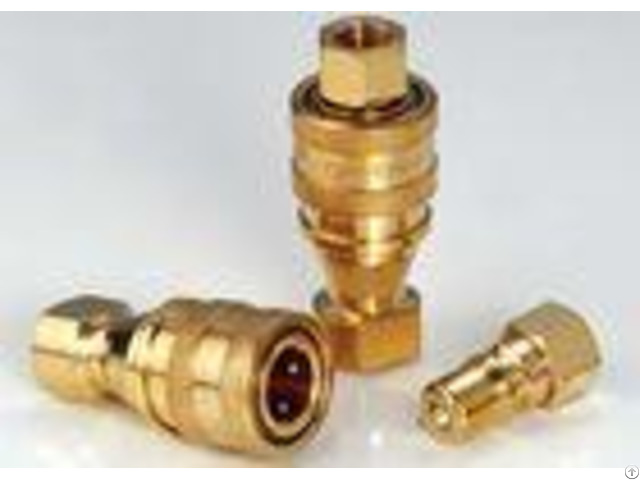

Kzd Hydraulic Quick Connect Couplings High Performance Brass Iso7241 B - China
price: check with company for price
KZD, ISO7241-B Hydraulic Couplings in Female Thread, Brass Descripton: KZD Medium-pressure High Performance Pneumatic And Hydraulic Quick Coupling(Brass) Applications: KZD couplings, are used across the spectrum of hydraulic applications.
These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.
Primarily used with hydraulic fluid.
KZD couplings are also used with chemicals, water, steam, and some gases.
Specifications - - - - Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1(1/4) | 1(1/2) | 2 | Rated Pressure(PSI) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | Rated Flow(GPM) | 1 | 3 | 6 | 12 | 28 | 50 | 75 | 100 | 150 | Temperature Range(std seals) | -20 to +120 | Standard seal material | NBR | - - - - KZD Series couplings feature: 1 - Poppet valves available to prevent uncoupled leakage.
2 - Poppet valves open automatially when coupled within rated working pressure, to keep the flow expeditely.
3 - Dependable ball-locking mechanism holds the mating halves together.
4 - Socket and plug are precision machined from solid bar stock.
5 - KZD series conforms to the standard ISO7241-B.
6 - Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.
Performance: Test Fluid: Oil-150SUS.
KZD (1/8", 1/4", 3/8", 1/2") KZD (3/4", 1", 11/4", 11/2", 2") Socket - - - - ISO | PARTNO.
| LS | D | HEX1 | A | T | 5 | KZD-01SF | 48 | 24 | 14 | 8 | G1/8 | 6.3 | KZD-02SF | 58 | 27 | 19 | 12.5 | ZG1/4 | 10 | KZD-03SF | 65 | 35 | 22 | 13 | ZG3/8 | 12.5 | KZD-04SF | 72.5 | 45 | 29 | 14 | ZG1/2 | 20 | KZD-06SF | 88 | 54 | 36 | 17 | ZG3/4 | 25 | KZD-08SF | 102 | 64.5 | 41 | 23 | ZG1 | 31.5 | KZD-10SF | 115 | 69 | 54 | 27 | ZG1-1/4 | 40 | KZD-12SF | 124 | 79 | 60 | 27 | ZG1-1/2 | 50 | KZD-16SF | 132 | 102 | 77 | 30 | ZG2 | Note: Only size 01 to 08 conform to the standard of ISO 7241-B | - - - - Plug - - - - ISO | PARTNO.
| LP | d | C | HEX2 | A | T | 5 | KZD-01PF | 29 | 10.8 | 19 | 14 | 8 | G1/8 | 6.3 | KZD-02PF | 36 | 14.2 | 22.5 | 17 | 12.5 | ZG1/4 | 10 | KZD-03PF | 40 | 19 | 25 | 22 | 13 | ZG3/8 | 12.5 | KZD-04PF | 44 | 23.5 | 28 | 27 | 14 | ZG1/2 | 20 | KZD-06PF | 52 | 31.4 | 36 | 36 | 17 | ZG3/4 | 25 | KZD-08PF | 62 | 37.8 | 40 | 41 | 23 | ZG1 | 31.5 | KZD-10PF | 70 | 45 | 45 | 52 | 27 | ZG1-1/4 | 40 | KZD-12PF | 75 | 50 | 49 | 60 | 27 | ZG1-1/2 | 50 | KZD-16PF | 80 | 70 | 52 | 77 | 30 | ZG2 | Note: Only size 01 to 08 conform to the standard of ISO 7241-B | - - - - Coupled - - - - ISO | PARTNO.
| L | D | HEX1 | HEX2 | T | 5 | KZD-01 | 58.5 | 24 | 14 | 14 | G1/8 | 6.3 | KZD-02 | 72.5 | 28 | 19 | 17 | ZG1/4 | 10 | KZD-03 | 80.5 | 35 | 22 | 22 | ZG3/8 | 12.5 | KZD-04 | 89 | 45 | 29 | 27 | ZG1/2 | 20 | KZD-06 | 105 | 54 | 36 | 36 | ZG3/4 | 25 | KZD-08 | 124.5 | 64.5 | 41 | 41 | ZG1 | 31.5 | KZD-10 | 140.5 | 69 | 54 | 52 | ZG1-1/4 | 40 | KZD-12 | 150.5 | 79 | 60 | 60 | ZG1-1/2 | 50 | KZD-16 | 160.5 | 102 | 77 | 77 | ZG2 | Note: Only size 01 to 08 conform to the standard of ISO 7241-B | - - - -
Company Contact:
- Phone: 86-574-63286838
- Address: NO. 369, North, Dachang Rd. Kandun Industrial B Zone, Cixi, Zhejiang, China., Ningbo , Zhejiang , China
- Email:
Published date: March 30, 2018
- Business Description: Zhejiang Songqiao Pneumatic Hydraulic Co., Ltd.Over 300 advanced production equipments and it has professional automatic processing and assembly line, it specializes in producing hydraulic quick couplings, pneumatic quick couplings and pneumatic couplings.
