Impact Roller - China

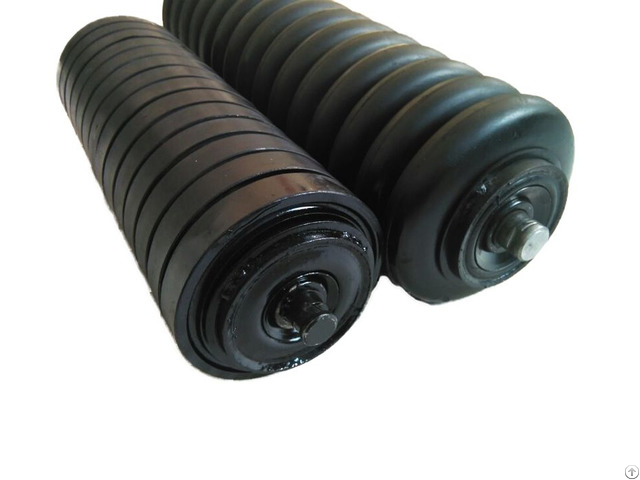

Impact Roller

Our factory Huayun conveyor belt impact rollers have different kind, they are rubber lined conveyor roller, rubber rings conveyor roller and rubber coated conveyor roller.

About the impact rollers we also have many different size and also can make as customers requirment.

Our impact conveyor rollers have good hardness and wear-resisting characteristics.

Manufacturing Procedures:

Our Huayun workers in workshop have many years experience, and we have The most advanced equipment.

And our workshop is open, welcome visit our production process and quality everytime.

The impact conveyor roller production process is as following:

1 - Pipe Cutting: After the treatment, the pipes are cut into fixed length;

2 - End Boring: In this step, boring is processed.

With our automatic double end boring machine, we make sure that the roller pipe is treated under the same level;

3 - Bearing Welding: Two bearings are pressed into the pipe, and welded together with the pipe;

4 - rubber: As cutomers requirement we will make rubber lined, rubber rings or rubber coated on the pipe.

5 - Shaft Cutting: Similar to the pipe cutting process, the shafts are cut into same length and the section is flat;

6 - Shaft Milling: At this stage, the shaft is treated at two ends, making into the flat ends;

7 - Final Assembling: In this last step, the pipe and the shaft are pressed into a steel tube conveyor roller with the automatic press assembling machine.

Product Specification:

Pipe diameter/mm Roller Dia(mm) Length Scope(mm) Shaft Dia(mm) Bearings Type(Min-Max) Roller's TubeThickness

60 72 150-2500 20; 25 204 We can make as your request

60 89 20; 25 204 76 89 20; 25 204 205 76 108 20; 25 204 205 89 108 20; 25 204 205 305 89 133 20.25 204 205 305 89 127 20;25 205 206 305 89 152 20; 25 204 205 305 108 133 20; 25; 30 205 206 305 306 108 159 20; 25; 30 205 305 306 133 159 20; 25; 30.35 205 206 207 305 306 307 133 194 20; 25; 30; 35 205 206 207 305 306 307 89 116 20; 25 207 305 306 307 308 89 120 20; 25 204 205
